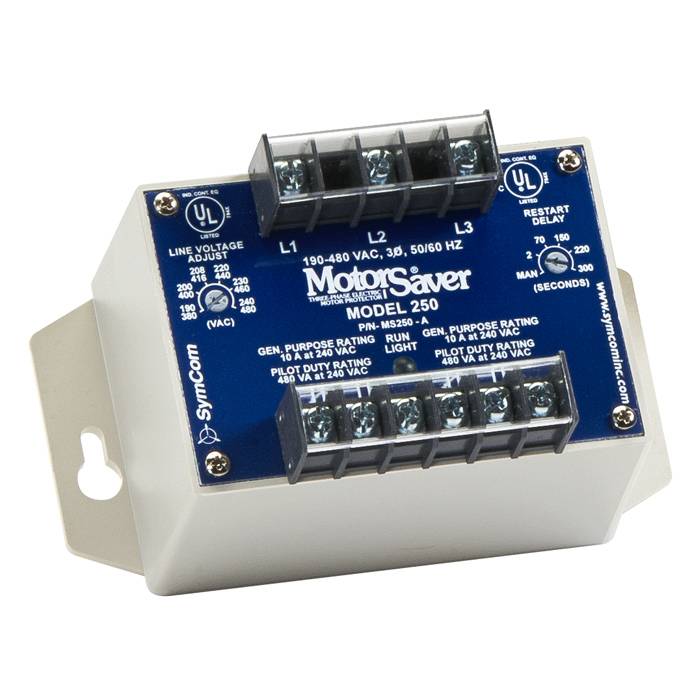

Littelfuse® Symcom 250A 3-Phase Voltage Monitoring Relay, 190 to 480 VAC, DPDT 2-Form C Contact

The 250A is a 3-phase, auto-ranging, dual range voltage monitor that protects 190 to 480 VAC, 50/60 Hz motors regardless of size from low and high voltage, unbalance/1-phase and reverse phase. The product provides a user selectable nominal voltage set point and the voltage monitor automatically selects between the 200 VAC and 400 VAC range. The 250A also features adjustable or manual restart delay. This unique microcontroller based voltage and phase sensing device constantly monitors the 3-phase voltages to detect harmful power line conditions. When a harmful condition is detected, the output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to acceptable levels. The model 250A includes advanced single LED diagnostics. Five different light patterns distinguish between faults and normal conditions.

Littelfuse® Symcom Voltage Monitoring Relay, 3-Phase, Series: 250A, 190 to 480 VAC, 50/60 Hz Frequency, DPDT 2-Form C Contact Configuration, Threaded Mounting, 2/4 s Trip Delay, 5.27 in W x 2.95 in D x 2.93 in H Dimensions
