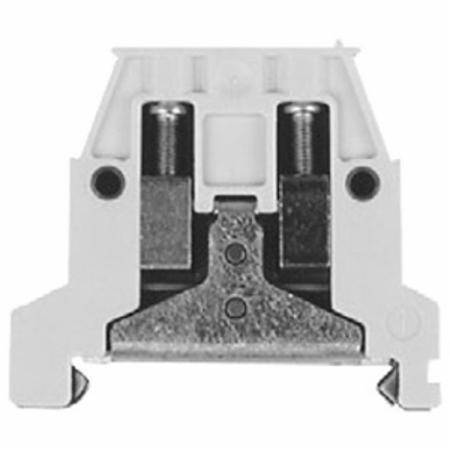

22 to 10 AWG, Sprecher + Schuh V7-WG6 Grounding Terminal Block, Green/Yellow
Share Share Print Print
Sprecher + Schuh

22 to 10 AWG, Sprecher + Schuh V7-WG6 Grounding Terminal Block, Green/Yellow

Short Description

1.89" x 1.61", Green/Yellow, Polyamide 6.6, Single Tier 1-Circuit, Grounding, Grounding Terminal Block

Grounding Terminal Block; Type Grounding; Configuration Single Tier 1-Circuit; Construction Standard IEC; Wire Size 22 to 10 AWG (UL/CSA), 6 Square Millimeter (IEC); Terminal Type Screw; Block Width 0.28 Inch; Wire Strip Length 0.47 Inch; Size 1.89 Inch Width x 1.61 Inch Height; Temperature Rating -40 to 195 Deg F; Housing Material Polyamide 6.6; Color Green/Yellow; Mounting DIN Rail; Approval UL, CSA, CE; Terminal Width 7 Inch; Tightening Torque 5.6 to 6.8 Inch-Pound

MFG #: V7-WG6

EECO #: SSV7WG6

Brand: Sprecher + Schuh
Attributes
Features
Documents
Product Information
Attributes
Color
Green/Yellow
UNSPSC
39121410
Approval
UL, CSA, CE
Wire Size
22 to 10 AWG (UL/CSA), 6 Square Millimeter (IEC)
Terminal Type
Screw
Housing Material
Polyamide 6.6
Mounting
DIN Rail
Wire Strip Length
0.47 Inch
Temperature Rating
-40 to 195 Deg F
Construction Standard
IEC
Size
1.89 Inch Widthx 1.61 Inch Height
Type
Grounding
Block Width
0.28 Inch
Configuration
Single Tier 1-Circuit
Features
  • V7-W Accommodate a Full Range of Wire Sizes
  • Super Reliable Connections
  • With V7-W Terminals a Cone Shaped Guide Allows Easy Insertion of the Wire into a Nickel Plated Barrel
  • As Tightening Torque is Applied to Strong Stainless Steel Screws, the Wire is Secured Between a Recessed Contact Pad and Serrated Current Bar
  • This Corrosion Resistant Clamping Mechanism Provides Excellent Performance in the Most Demanding Industrial Conditions
  • Superior Insulation and Protection Features
  • Standard Feed-Through Blocks Provides One Straight-Through Circuit for Wire Sizes up to 70 MM2
SPRSCHE00006_N2_N3_N10
Qty Unit price
Ea
1 $3.69

Slqt
1 $3.69

Stpk
1 $3.69

Unit
1 $3.69
