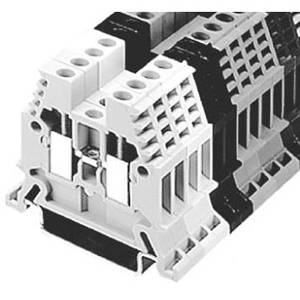

22 to 10 AWG, Sprecher + Schuh V7-W4-Y Feed-Through Terminal Block, Yellow
Share Share Print Print
Sprecher + Schuh

22 to 10 AWG, Sprecher + Schuh V7-W4-Y Feed-Through Terminal Block, Yellow

Short Description

1.78" x 1.38", 600/800 VAC/VDC, 30/32 A, Yellow, Polyamide 6.6, Single Tier 1-Circuit, Standard, Feed-Through Terminal Block

Feed-Through Terminal Block; Type Standard; Configuration Single Tier 1-Circuit; Construction Standard IEC; Voltage Rating 600 Volt AC/DC (UL/CSA), 800 Volt AC/DC (IEC); Current Rating 30 Amp (UL/CSA), 32 Amp (IEC); Wire Size 22 to 10 AWG (UL/CSA), 0.5 to 4 Square Millimeter (IEC); Terminal Type Screw; Block Width 0.24 Inch; Wire Strip Length 0.35 Inch; Size 1.78 Inch Width x 1.38 Inch Height; Temperature Rating -40 to 195 Deg F; Housing Material Polyamide 6.6; Color Yellow; Mounting DIN Rail; Approval UL, CSA, CE; Terminal Width 6 Inch; Tightening Torque 5 to 5.6 Inch-Pound

MFG #: V7-W4-Y

EECO #: SSV7W4Y

Brand: Sprecher + Schuh
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121410
Approval
UL, CSA, CE
Wire Size
22 to 10 AWG (UL/CSA), 0.5 to 4 Square Millimeter (IEC)
Terminal Type
Screw
Current Rating
30 Amp (UL/CSA), 32 Amp (IEC)
Voltage Rating
600 Volt AC/DC (UL/CSA), 800 Volt AC/DC (IEC)
Housing Material
Polyamide 6.6
Mounting
DIN Rail
Wire Strip Length
0.35 Inch
Temperature Rating
-40 to 195 Deg F
Construction Standard
IEC
Size
1.78 Inch Widthx 1.38 Inch Height
Type
Standard
Block Width
0.24 Inch
Configuration
Single Tier 1-Circuit
Features
  • V7-W Accommodate a Full Range of Wire Sizes
  • Super Reliable Connections
  • With V7-W Terminals a Cone Shaped Guide Allows Easy Insertion of the Wire into a Nickel Plated Barrel
  • As Tightening Torque is Applied to Strong Stainless Steel Screws, the Wire is Secured Between a Recessed Contact Pad and Serrated Current Bar
  • This Corrosion Resistant Clamping Mechanism Provides Excellent Performance in the Most Demanding Industrial Conditions
  • Superior Insulation and Protection Features
  • Standard Feed-Through Blocks Provides One Straight-Through Circuit for Wire Sizes up to 70 MM2
