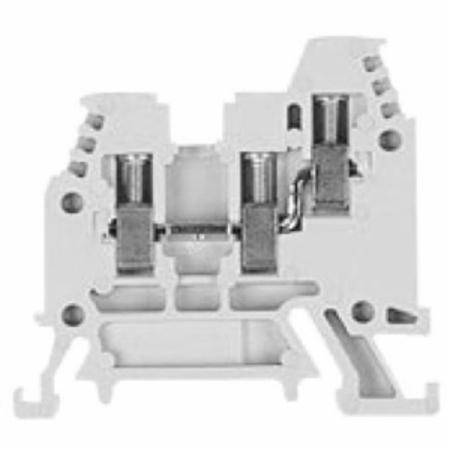

30 to 14 AWG, Sprecher + Schuh V7-W3-TW Feed-Through Terminal Block, Gray
Share Share Print Print
Sprecher + Schuh

30 to 14 AWG, Sprecher + Schuh V7-W3-TW Feed-Through Terminal Block, Gray

Short Description

2.05" x 1.64", 600/800 VAC/VDC, 15/24 A, Gray, Polyamide 6.6, Single Tier 1-Circuit, Specialty, Feed-Through Terminal Block

Feed-Through Terminal Block; Type Specialty; Configuration Single Tier 1-Circuit; Construction Standard IEC; Voltage Rating 600 Volt AC/DC (UL/CSA), 800 Volt AC/DC (IEC); Current Rating 15 Amp (UL/CSA), 24 Amp (IEC); Wire Size 30 to 14 AWG (UL), 22 to 14 AWG (CSA), 0.5 to 2.5 Square Millimeter (IEC); Terminal Type Screw; Block Width 0.2 Inch; Wire Strip Length 0.35 Inch; Size 2.05 Inch Width x 1.64 Inch Height; Temperature Rating -40 to 195 Deg F; Housing Material Polyamide 6.6; Color Gray; Mounting DIN Rail; Approval UL, CSA, CE; Terminal Width 5 Inch; Tightening Torque 4.2 to 4.6 Inch-Pound; Number of Conductors 3

MFG #: V7-W3-TW

EECO #: SSV7W3TW

Brand: Sprecher + Schuh
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
UNSPSC
39121410
Approval
UL, CSA, CE
Wire Size
30 to 14 AWG (UL), 22 to 14 AWG (CSA), 0.5 to 2.5 Square Millimeter (IEC)
Terminal Type
Screw
Current Rating
15 Amp (UL/CSA), 24 Amp (IEC)
Voltage Rating
600 Volt AC/DC (UL/CSA), 800 Volt AC/DC (IEC)
Housing Material
Polyamide 6.6
Mounting
DIN Rail
Wire Strip Length
0.35 Inch
Temperature Rating
-40 to 195 Deg F
Construction Standard
IEC
Size
2.05 Inch Widthx 1.64 Inch Height
Type
Specialty
Block Width
0.2 Inch
Configuration
Single Tier 1-Circuit
Features
  • V7-W Accommodate a Full Range of Wire Sizes
  • Super Reliable Connections
  • With V7-W Terminals a Cone Shaped Guide Allows Easy Insertion of the Wire into a Nickel Plated Barrel
  • As Tightening Torque is Applied to Strong Stainless Steel Screws the Wire is Secured Between a Recessed Contact Pad and Serrated Current Bar
  • This Corrosion Resistant Clamping Mechanism Provides Excellent Performance in the Most Demanding Industrial Conditions
  • Superior Insulation and Protection Features
  • Specialty Feed-Through Terminals that Provide Multiple Terminations or Increase the Density of Connections
  • This Reduces Panel Space and Saves Money
  • Specialty Feed-Through Blocks Provides One Straight Through Circuit with 3 Wire Terminals
