Sprecher + Schuh D7D-MT44X11 Non-Illuminated Push-Pull Pushbutton
Share Share Print Print
Sprecher + Schuh

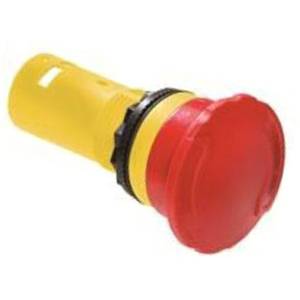

Sprecher + Schuh D7D-MT44X11 Non-Illuminated Push-Pull Pushbutton

Short Description

22 MM, 1NO-1NC, Red Cap, Glass Filled Polyester, Push-Pull/Push-to-Release, Emergency Stop, Non-Illuminated Push-Pull Pushbutton

Non-Illuminated Push-Pull Pushbutton; Type Emergency Stop Button Mushroom 40 Millimeter Diameter; Size 22 Millimeter; Operation Type Push-Pull/Push-to-Release; Contact Configuration 1NO-1NC; Cap/Lens Color Red; Body Material Glass Filled Polyester; Enclosure NEMA 4/4X/13, IP66; Screw Termination Standard; Applicable Standard EN ISO 13850/60947-5-5

MFG #: D7D-MT44X11

EECO #: SSD7DMT44X11

Brand: Sprecher + Schuh
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122216
Body Material
Glass Filled Polyester
Cap/Lens Color
Red
Contact Configuration
1NO+1NC
Size
22 Millimeter
Operation Type
Push-Pull/Push-to-Release
Features
  • Push-Pull and Twist-To-Release in One Device
  • Non-Removable Contacts Promote Safety in E-Stop Applications
  • Arrows Molded on Cap Indicate Direction of Release
  • Trigger Action Anti-Tease Feature
  • Externally Tamper Proof
  • 40 MM Mushroom Cap
  • Non-Illuminated
Qty Unit price
Ea
1 $37.47

Slqt
1 $37.47

Stpk
1 $37.47

Unit
1 $37.47
