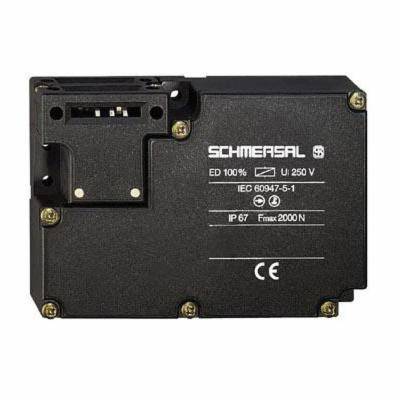

Schmersal AZM 161SK-12/12RKA-024 Electro-Mechanical Solenoid Interlock Switch, 24 VAC/VDC, 6 A

Short Description

Ensure safety and reliability with the Schmersal AZM 161SK-12/12RKA-024 Electro-Mechanical Solenoid Interlock Switch. Designed for 24 VAC/VDC applications, this robust switch features an IP67 enclosure and is built to withstand the toughest environments. Ideal for various industrial uses, it combines durability with exceptional performance.Enhanced by AI

Schmersal Solenoid Interlock Switch, Electro-Mechanical, Series: AZM, 24 VAC/VDC, 6 A, 10 W Power, IP67 Enclosure, Glass Fiber Reinforced Thermoplastic/Plastic, 30 mm L x 130 mm W x 90 mm H Dimensions

MFG #: AZM 161SK-12/12RKA-024

EECO #: SMAZM161SK1212RKA024

Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122205
Material
Glass Fiber Reinforced Thermoplastic/Plastic
Application
Sliding, Removable and Hinged Safety Guard
Power Rating
10
Enclosure Type
IP67
Voltage Rating
24
Type
Electro-Mechanical
Series
AZM
Dimensions
30 mm L x 130 mm W x 90 mm H
Amperage Rating
6
Features
  • Power to unlock
  • Actuator monitored
  • Guard locking monitored
  • Thermoplastic enclosure
  • Double-insulated
  • Interlock with protection against incorrect locking
  • 6 Contacts
  • Long life
  • Large wiring compartment
  • Manual release
  • 4 cable entries M16 x 1.5
  • 3 pieces of actuating directions
  • Magnet 100 % duty cycle
  • Plastic, glass-fiber reinforced thermoplastic, self-extinguishing housing
  • Silver contact
  • 5.5 mm screw connection
  • 0.25 to 1.5 sq-mm cable section
  • >1000000 operations mechanical life
  • 30 N latching force
  • 20 N positive break force
SchmersalAZM_161SK_12_12RKA_024_Manual
