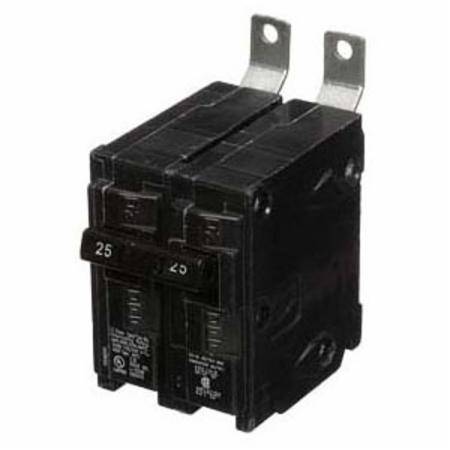

Siemens AG B225 SPEEDFAX™ Panelboard Circuit Breaker
Share Share Print Print
Siemens

Siemens AG B225 SPEEDFAX™ Panelboard Circuit Breaker

Short Description

120/240 VAC at 50/60 Hz, 25 A, 10 kA, 2-Pole, Bolt-On, Molded Case, Thermal and Fixed Magnetic, Branch, Common Trip, Panelboard Circuit Breaker

Panelboard Circuit Breaker; Type Molded Case, Thermal and Fixed Magnetic, Branch, Common Trip; Voltage Rating 120/240 Volt AC at 50/60 Hertz (UL); Current Rating 25 Amp at 40 Deg C; Number of Poles 2; Interrupting Rating 10 Kiloamp at 120/240 Volt AC (UL); Installation Bolt-On; Application Lighting, Distribution; Used On P1/P2/P3/P4/P5 Panelboard; Approval UL 489, CSA C22.2; Frame Type BL; Terminal Type Load Lug; Overall Dimension 2 Inch Width x 3 Inch Depth x 3-9/16 Inch Height

MFG #: B225

EECO #: SICB225

Brand: Siemens
UPC #: 783643263543
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121601
Used On
P1/P2/P3/P4/P5Panelboard
Approval
UL 489, CSA-C22.2
Application
Lighting, Distribution
Installation
Bolt-On
Current Rating
25 Amp at 40 Deg C
Voltage Rating
120/240 Volt AC at 50/60 Hertz (UL)
Number Of Poles
2
Interrupting Rating
10 Kiloamp at 120/240 Volt AC (UL)
Type
Molded Case, Thermal and Fixed Magnetic, Branch, Common Trip
Features
  • Type: Molded Case Circuit Breaker with Thermal and Fixed Magnetic capabilities
  • Voltage Rating: 120/240 Volt AC at 50/60 Hertz (UL certified)
  • Current Rating: 25 Amp at 40°C
  • Number of Poles: 2
  • Interrupting Rating: 10 Kiloamp at 120/240 Volt AC (UL certified)
  • Installation: Bolt-On
  • Application: Suitable for Lighting and Distribution
  • Compatibility: Designed for use on P1/P2/P3/P4/P5 Panelboards
  • Certifications: UL 489, CSA C22.2 approved
  • Frame Type: BL
  • Terminal Type: Load Lug
  • Overall Dimensions: 2 Inch Width x 3 Inch Depth x 3-9/16 Inch Height
