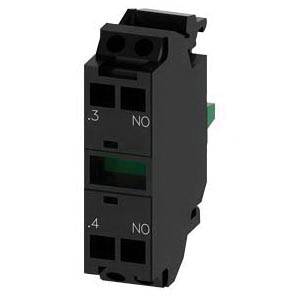

Siemens SIRIUS ACT A6X30144699 3SU14 Standard Contact Module, 1NO Contact, 10 A at 24 VAC, 0.1 A at 500 VDC Contact, Silver Alloy Contact, Black
Share Share Print Print
Siemens

Siemens SIRIUS ACT A6X30144699 3SU14 Standard Contact Module, 1NO Contact, 10 A at 24 VAC, 0.1 A at 500 VDC Contact, Silver Alloy Contact, Black

Short Description

The contact modules are fitted with slow action contacts (NO contacts or NC contacts). These ensure a high software itching reliability even with small voltages and currents, such as 5 V/1 mA. They are suitable for use in electronic systems as well as conventional controls. The contact pieces of the NC contacts are positively driven.

Siemens SIRIUS ACT Contact Module, Standard, Series: 3SU14, 1NO Contact Configuration, 10 A at 24 VAC, 0.1 A at 500 VDC Contact, Silver Alloy Contact, IP20/IP40 Enclosure, Spring Loaded Terminal, Front Plate Mounting, Black, 36 mm H x 9.8 mm W x 27.7 mm D Dimensions
MFG #: A6X30144699

EECO #: SICA6X30144699

Brand: Siemens
UPC #: 804766661105
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121521
Application
For actuators and indicators
Mounting Type
Front Plate
Terminal Type
Spring-Loaded
Contact Rating
10 A at 24 VAC, 0.1 A at 500 VDC
Enclosure Type
IP20/IP40
Contact Configuration
1NO
Type
Standard
Series
3SU14
Dimensions
36 mm H x 9.8 mm W x 27.7 mm D
Contact Material
Silver Alloy
Features
  • 10 A at 24/48/110 VAC, 8 A at 230/400 VAC operating current at AC-12
  • 6 A at 24/48/110/230 VAC, 3 A at 400 VAC, 1.4 A at 500 VAC operating current at AC-15
  • 10 A at 24 VDC, 5 A at 48 VDC, 2.5 A at 110 VDC, 1 A at 230 VDC, 0.3 A at 400/500 VDC operating current at DC-12
  • 3 A at 24 VDC, 1.5 A at 48 VDC, 0.7 A at 110 VDC, 0.3 A at 230 VDC, 0.1 A at 400/500 VDC operating current at DC-13
Siemens_52AAC_Catalog
Siemens_A6X30144699_Specification_Sheet
