Siemens SIMOGEAR A6X30134961 3-Stage 4-Pole Geared Motor, 230/460Y VAC, 1 hp, 73.77 Gear Ratio, 1760 rpm Rated/23.857 rpm Output Max, 480 N-m Torque
Share Share Print Print
Siemens

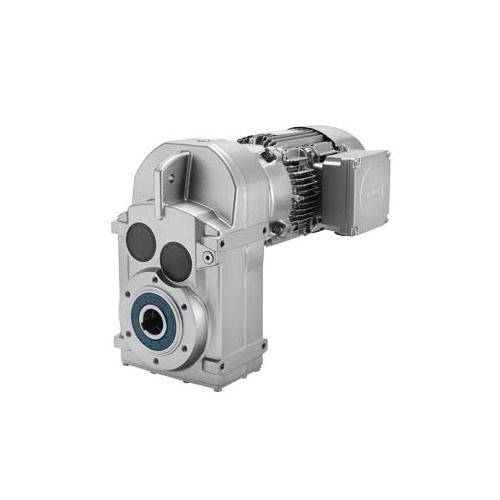

Siemens SIMOGEAR A6X30134961 3-Stage 4-Pole Geared Motor, 230/460Y VAC, 1 hp, 73.77 Gear Ratio, 1760 rpm Rated/23.857 rpm Output Max, 480 N-m Torque

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Elevate your machinery's performance with the Siemens SIMOGEAR A6X30134961 3-Stage Geared Motor. Featuring a robust design, impressive torque of 480 N-m, and a versatile 73.77 gear ratio, this motor is engineered for efficiency and reliability in demanding applications.Enhanced by AI

Siemens SIMOGEAR Geared Motor, 3-Stage 4-Pole, 230/460Y VAC, 1.59/3.18 A Full Load Amperage, 1 hp, 60 Hz Frequency, 3 ph, 1760 rpm Rated/23.857 rpm Output Maximum, 40 mm Shaft Diameter, 80 mm Shaft Length, Clockwise Input/Counterclockwise Output Shaft Rotation, 480 N-m Torque, 73.77 Gear Ratio, Parallel Shaft Gear, LE80ZMQ4P Squirrel Cage Induction Motor, Roller Bearing, Housing Flange Mounting, -15 to 40 deg C, IP55 Enclosure, Cast Iron Housing Material, Painted, 317.5 mm H Dimensions

MFG #: A6X30134961

EECO #: SICA6X30134961

Brand: Siemens
UPC #: 804766555336
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Phase
3
Finish
Painted
UNSPSC
20101617
Mounting Type
Housing Flange
Torque Rating
480
Enclosure Type
IP55
Voltage Rating
230/460Y VAC
Frequency Rating
60
Housing Material
Cast Iron
Temperature Rating
-15 to 40
Type
3-Stage 4-Pole
Gear Type
Parallel Shaft
Dimensions
317.5 mm H
Horsepower
1
Motor Type
LE80ZMQ4P Squirrel Cage Induction Motor
Bearing Type
Roller
Shaft Length
80
Shaft Diameter
40
Features
  • 230YY VAC at 60 Hz 1st voltage and 460Y VAC at 60 Hz 2nd voltage
  • 3.18 A at 60 Hz 1st rated current and 1.59 A at 60 Hz 2nd rated current
Siemens_A6X30134961_Full_Engineering_Drawing
Siemens_A6X30134961_Specification_Sheet
