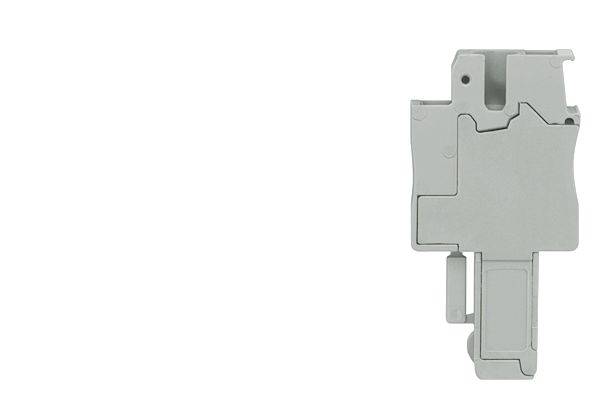

PrintSiemens 8WH90401FB00 Bridgeable Plug-In Coupling With Slot, 0.08 to 2.5 sq-mm Spring Loaded Connection, 500 VAC, 24 A, Right Construction, DIN Rail Mount
Assembled by the user in-situ from 1-pole plug elements, the combination plug-in terminals in kit form provide a customized solution for every task. For the existing plugs with terminal sizes 2.5 sq-mm and 4 sq-mm and the plug with comb connection and terminal size 2.5 sq-mm, 1-pole basic versions in the colors gray, blue and green yellow are available. A left element at the beginning of the plug and a right element at the end are needed for each multi-pole plug. The number of middle elements depends on the plugs required number of poles. The individual elements are simply pushed together and latched with securing pins. Pliers may be needed to push them together. The right hand component has an integrated cover, which covers the plug block. Labels enable flat inscription of the plugs.
Siemens Sentron™ Plug-In Coupling, Bridgeable, 500 VAC, 24 A, Right Construction, DIN Rail Mount, For Use With: ALPHA FIX Terminal Block, 5.2 mm W Spacing, 2.5 sq-mm Terminal, Composite, GrayEECO #: SIC8WH90401FB00
