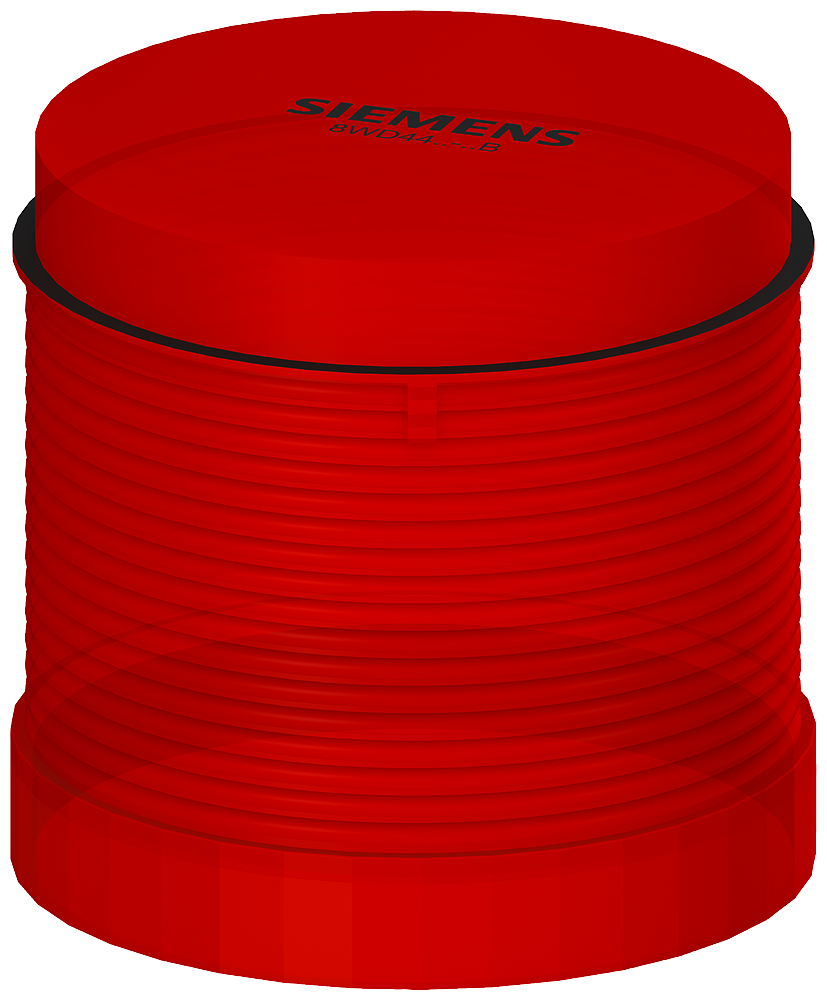

Siemens 8WD44505BB Signaling Column Flashlight Element w/ Integrated LED, 230 VAC, LED Lamp, 70 mm Dia, Bayonet Mount, Red, UL Listed, EAC Certified, CE Certified, WEEE (2012/19/EU)
Share Share Print Print
Siemens

Siemens 8WD44505BB Signaling Column Flashlight Element w/ Integrated LED, 230 VAC, LED Lamp, 70 mm Dia, Bayonet Mount, Red, UL Listed, EAC Certified, CE Certified, WEEE (2012/19/EU)

Short Description

Illuminate your signaling needs with the Siemens 8WD44505BB Flashlight Element! This efficient LED lamp features a vibrant red light, designed for optimal visibility and a long lifespan of up to 100,000 hours. With a bayonet mount and robust certifications, it's the perfect solution for reliable signaling in various environments.Enhanced by AI

Siemens SIRIUS Flashlight Element, Signaling Column, Series: 8WD44, 230 VAC, 35 mA, 70 mm Dia, LED Lamp, Red, Repeat Flashing Flash, 0.47 to 1.07 cd, 100000 hr Average Life, Specifications Met: UL Listed, EAC Certified, CE Certified, WEEE (2012/19/EU), Bayonet Mount, -20 to 50 deg C, Polycarbonate, 65.5 mm H x 70 mm W

MFG #: 8WD44505BB

EECO #: SIC8WD44505BB

Brand: Siemens
Attributes
Features
Documents
Product Information
Attributes
Color
Red
UNSPSC
39121534
Material
Polycarbonate
Lamp Type
LED
Mounting Type
Bayonet
Voltage Rating
230
Temperature Rating
-20 to 50
Type
Signaling Column
Series
8WD44
Diameter
70
Dimensions
65.5 mm H x 70 mm W
Amperage Rating
35
Features
  • Model: Siemens SIRIUS Signaling Column Flashlight Element, Series 8WD44
  • Power Supply: 230 VAC
  • Current Consumption: 35 mA
  • Diameter: 70 mm
  • Mounting Type: Bayonet Mount
  • Color: Red
  • Light Source: Integrated LED Lamp
  • Flashing Mode: Repeat Flashing
  • Light Intensity: 0.47 to 1.07 candela
  • Average Lifespan: 100,000 hours
  • Operating Temperature Range: -20 to 50 degrees Celsius
  • Material: Polycarbonate
  • Dimensions: 65.5 mm Height x 70 mm Width
  • Certifications: UL Listed, EAC Certified, CE Certified, WEEE (2012/19/EU)
