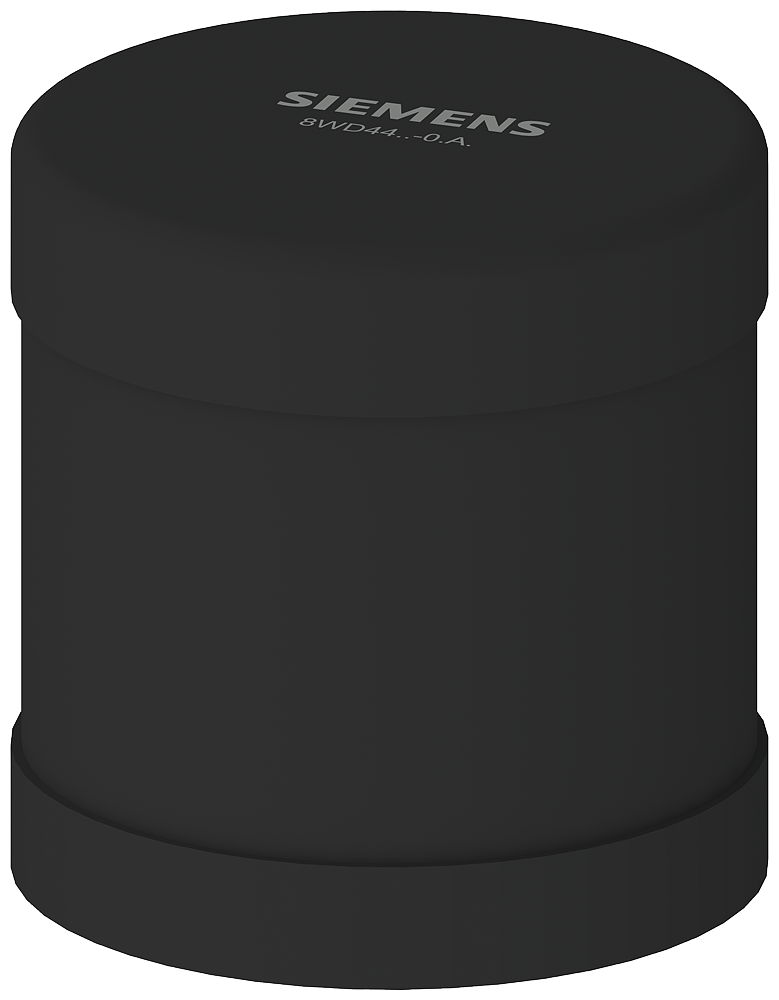

Siemens 8WD4450-0FA Adjustable Buzzer Element, 230 VAC, 25 mA, 85 dB Sound, Bayonet Mount, Black
Share Share Print Print
Siemens

Siemens 8WD4450-0FA Adjustable Buzzer Element, 230 VAC, 25 mA, 85 dB Sound, Bayonet Mount, Black

Short Description

Enhance your signaling capabilities with the Siemens 8WD4450-0FA Adjustable Buzzer Element. Featuring 85 dB sound output and a versatile bayonet mount, this reliable buzzer is perfect for a variety of applications. Operating at 230 VAC and designed for durability, it ensures clear alerts in any environment.Enhanced by AI

Siemens Buzzer Element, Adjustable, 230 VAC, 25 mA, 1.5 kHz, 85 dB, Bayonet Mount, -20 to 50 deg C Operating, Polycarbonate, Black, 70 mm Dia x 70 mm W x 72 mm H

MFG #: 8WD44500FA

EECO #: SIC8WD44500FA

Brand: Siemens
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121534
Material
Polycarbonate
Application
For 8WD44 signal column
Mounting Type
Bayonet
Voltage Rating
230
Frequency Rating
1.5
Operating Temperature
-20 to 50
Type
Adjustable
Dimensions
70 mm Dia x 70 mm W x 72 mm H
Sound Level
85
Amperage Rating
25
Features
  • Thermoplastic enclosure
  • Degree of protection IP54
  • Up to four elements can be mounted between the connection element and the cover
  • Continuous tone or pulsating
