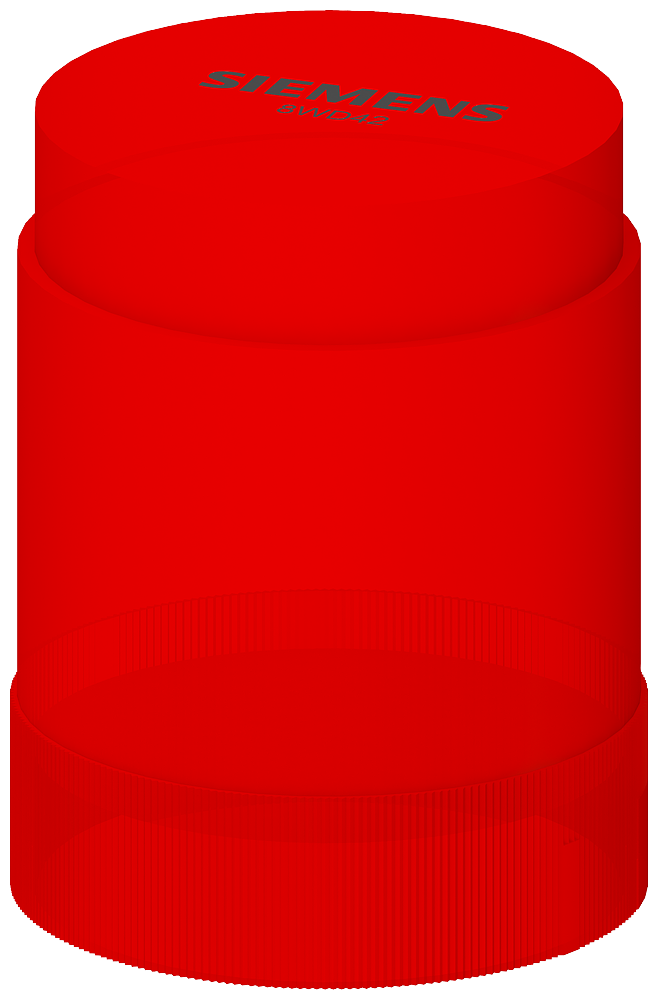

Siemens SIRIUS 8WD42200CB Signaling Column Flashlight Element, 24 VAC/VDC, LED Lamp, 50 mm Dia, Bayonet Mount, Red, UL Listed, EAC Certified, CE Certified, RCM Certified, WEEE 2012/19/EU
Share Share Print Print
Siemens

Siemens SIRIUS 8WD42200CB Signaling Column Flashlight Element, 24 VAC/VDC, LED Lamp, 50 mm Dia, Bayonet Mount, Red, UL Listed, EAC Certified, CE Certified, RCM Certified, WEEE 2012/19/EU

Short Description

Illuminate your workspace with the Siemens SIRIUS 8WD42200CB Signaling Column Flashlight Element. Featuring a vibrant red LED lamp and a compact design, this reliable signaling solution is perfect for effective communication in any environment. With UL, EAC, CE, and RCM certifications, you can trust its quality and safety.Enhanced by AI

Siemens SIRIUS Flashlight Element, Signaling Column, Series: 8WD42, 24 VAC/VDC, 45 mA, 50 mm Dia, LED Lamp, Red, Single Flash, 68 cd, 50000 hr Average Life, UL Listed, EAC Certified, CE Certified, RCM Certified, WEEE 2012/19/EU Specifications Met, Bayonet Mount, -20 to 50 deg C, Polycarbonate, 67 mm H x 52 mm W

MFG #: 8WD42200CB

EECO #: SIC8WD42200CB

Brand: Siemens
Attributes
Features
Documents
Product Information
Attributes
Color
Red
UNSPSC
39121534
Material
Polycarbonate
Lamp Type
LED
Mounting Type
Bayonet
Voltage Rating
24
Temperature Rating
-20 to 50
Type
Signaling Column
Series
8WD42
Diameter
50
Dimensions
67 mm H x 52 mm W
Amperage Rating
45
Features
  • Model: Siemens SIRIUS 8WD42200CB
  • Type: Signaling Column Flashlight Element
  • Voltage: 24 VAC/VDC
  • Current: 45 mA
  • Diameter: 50 mm
  • Light Source: LED Lamp
  • Color: Red
  • Flash Type: Single Flash
  • Luminous Intensity: 68 cd
  • Average Life: 50,000 hours
  • Mounting Type: Bayonet Mount
  • Operating Temperature: -20 to 50 °C
  • Material: Polycarbonate
  • Dimensions: 67 mm H x 52 mm W
  • Certifications: UL Listed, EAC Certified, CE Certified, RCM Certified
  • Compliance: WEEE 2012/19/EU Specifications Met
