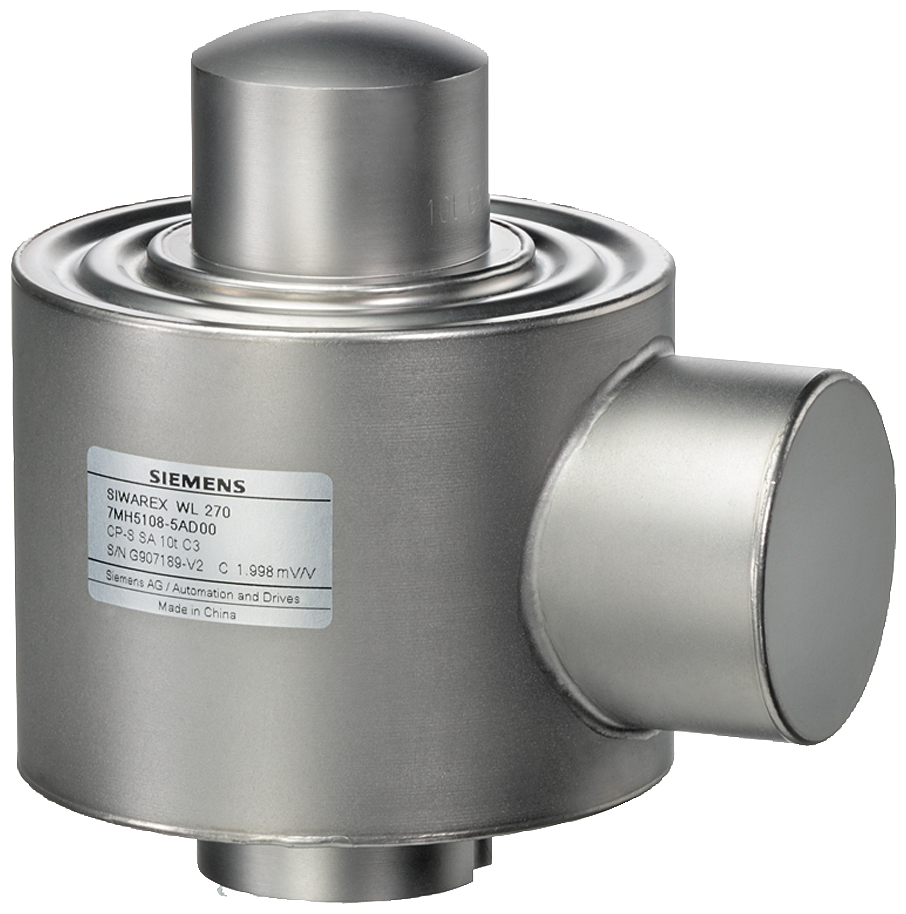

Siemens SIWAREX® 7MH51085KD00 WL270 CP-S SA Compression Load Cell With 15 m Connecting Cable, 30 ton Capacity
Share Share Print Print
Siemens

Siemens SIWAREX® 7MH51085KD00 WL270 CP-S SA Compression Load Cell With 15 m Connecting Cable, 30 ton Capacity

Short Description

The measuring element is a solid cylinder made of stainless steel to which 4 strain gauges are applied. The load which acts centrally in the measuring direction causes the spring bodies and therefore the friction-locked strain gauges to be elastically deformed. This generates a measuring signal voltage that is proportional to the load.

Siemens SIWAREX® Load Cell, Compression, Series: WL270 CP-S SA, 30 ton Capacity, -31 to 149 deg F, 5 to 12 VDC Power Source, Stainless Steel, 89 mm Dia x 119 mm H Dimensions
MFG #: 7MH51085KD00

EECO #: SIC7MH51085KD00

Brand: Siemens
UPC #: 804766159381
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Material
Stainless Steel
Application
For container weighers, overhead rail scales, vehicle scales and hopper
Temperature Rating
-31 to 149
Type
Compression
Series
WL270 CP-S SA
Capacity
30
Dimensions
89 mm Dia x 119 mm H
Features
  • Without explosion protection
  • Legal for trade according to OIML R60 up to 3000d, connecting cable 15 m (49.21 ft)
Siemens_7MH3105_1CC0_Catalog
Siemens_7MH51085KD00_Specification_Sheet
