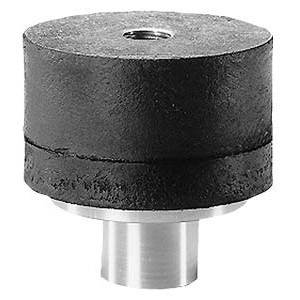

Siemens 7MH4133-3DE11 Elastomer bearing, For Use With SIWAREX® R and SIWAREX® WL200 and WL230 RN-S SA Load Cells, 22.05 to 440.92 lb Load, Neoprene/Stainless Steel

Elastomer bearings are rubber-metal composites made of neoprene and stainless steel. They ensure large spring excursions (i.e. a high degree of damping) despite small dimensions. If the load support is horizontally displaced by more than 0.16 in or 0.24 in for a rated load of 10 ton and 13 ton, the design of the load support must include measures to restrict lateral play (e.g. limit stops). Lifting of the load support must be prevented by suitable measures provided in the construction of the load bearing implement. The load cell and the self-aligning bearing bottom part are not included in the scope of delivery of the elastomer bearing.
