Siemens SIMATIC NET 6XV18702F Shielded Flexible Highly Bus Cable, 80 VAC, (4) 22 AWG, 20 to 1000 m L
Share Share Print Print
Siemens

Siemens SIMATIC NET 6XV18702F Shielded Flexible Highly Bus Cable, 80 VAC, (4) 22 AWG, 20 to 1000 m L

Short Description

Experience superior connectivity with the Siemens SIMATIC NET 6XV18702F Shielded Flexible Highly Bus Cable. Designed for optimal performance, this robust cable features a shielded design, 80 VAC rating, and durable construction, making it perfect for various applications. With a length range of 20 to 1000 m and a temperature tolerance of -40 to 80 deg C, it ensures reliable operation in challenging environments.Enhanced by AI

Siemens SIMATIC NET Highly Bus Cable, Shielded Flexible, 80 VAC, 4 Conductors, 22 AWG Conductor, 6.5 mm OD, 20 to 1000 m Length, Polyethylene Insulation, Polyurethane Jacket, Green Jacket, -40 to 80 deg C

MFG #: 6XV18702F

EECO #: SIC6XV18702F

Brand: Siemens
UPC #: 662643220070
Attributes
Features
Documents
Product Information
Attributes
Length
20 to 1000
UNSPSC
26121604
Application
For continuous motion control when using robots
Jacket Color
Green
Conductor Size
22
Voltage Rating
80
Jacket Material
Polyurethane
Temperature Rating
-40 to 80
Insulation Material
Polyethylene
Number of Conductors
4
Type
Shielded Flexible
Outside Diameter
6.5
Features
  • 100 Ohm at 1 to 100 MHz impedance
  • 15% of the characteristic impedance at 1 to 100 MHz relative symmetrical tolerance
  • 120 mOhm/m loop resistance per length/maximum

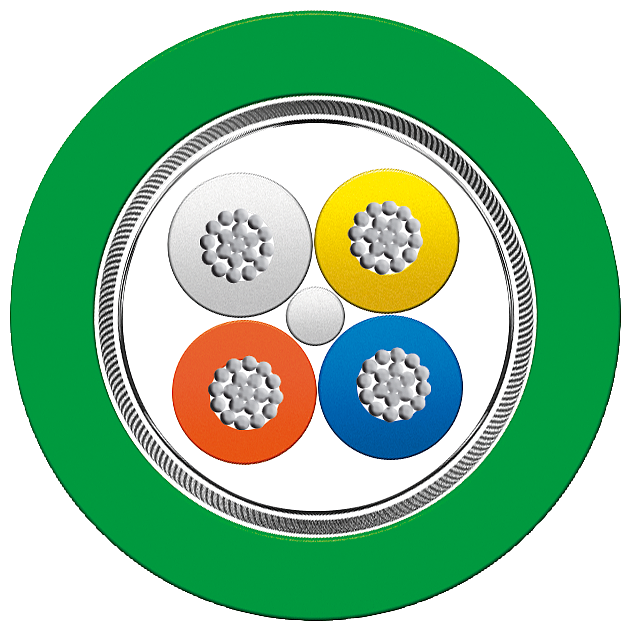

  • Overlapped aluminum clad foil, sheathed in a braided screen of tin plated copper wires design of the shield
  • 0.2 mm symmetrical tolerance of the OD/of cable sheath
  • PE of the wire insulation, PUR (TPE-U) cable sheath
  • White/yellow/blue orange of the insulation of data wires, green of cable sheath
  • Oil-resistant according to IEC 60811-2-1 (7 x 24 hr/90 deg C) to mineral Oil-resistant to grease and to water chemical resistance
  • Radiological resistance/to UV radiation resistant
