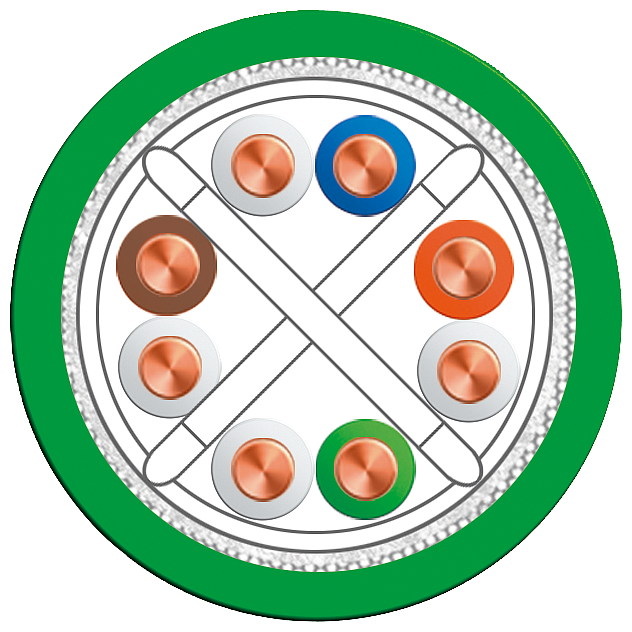

Siemens 6XV18702E Cat 6 General Purpose Standard Unassembled Bus Cable, 80 VAC, (8) 0.64, 1.25 sq-mm Braided Tin Plated Copper Conductor, 20 to 1000 m L
Share Share Print Print
Siemens

Siemens 6XV18702E Cat 6 General Purpose Standard Unassembled Bus Cable, 80 VAC, (8) 0.64, 1.25 sq-mm Braided Tin Plated Copper Conductor, 20 to 1000 m L

Short Description

Enhance your connectivity with the Siemens 6XV18702E Cat 6 General Purpose Standard Unassembled Bus Cable. Featuring durable braided tin-plated copper conductors and a robust PVC jacket, this cable is designed for reliable performance in a wide range of applications. With a temperature range of -40 to 80 degrees Celsius, it's perfect for both indoor and outdoor use!Enhanced by AI

Siemens Bus Cable, Cat 6 General Purpose Standard Unassembled, 80 VAC, 8 Conductors, Braided Tin Plated Copper Conductor, 0.64 , 1.25 sq-mm Conductor, 9.6 mm OD, 20 to 1000 m Length, RJ45 Modular Outlet Plug End Style, PE Insulation, PVC Jacket, Green Jacket, -40 to 80 deg C

MFG #: 6XV18702E

EECO #: SIC6XV18702E

Brand: Siemens
UPC #: 662643219005
Attributes
Features
Documents
Product Information
Attributes
Length
20 to 1000
UNSPSC
26121604
End Style
RJ45 Modular Outlet Plug
Application
Standard cable with rigid cores for fast, permanent installation
Jacket Color
Green
Conductor Size
0.64 , 1.25
Voltage Rating
80
Jacket Material
PVC
Temperature Rating
-40 to 80
Insulation Material
PE
Number of Conductors
8
Type
Cat 6 General Purpose Standard Unassembled
Conductor Type
Braided Tin Plated Copper
Outside Diameter
9.6
Features
  • Time saving due to quick and easy assembly using FastConnect™ cables
  • Simple and error-free construction of an 8-core cabling system with gigabit capability
  • Due to the 8-core cabling, you can either implement two industrial Ethernet connections for fast Ethernet
  • Noise immune network due to a consistent grounding concept
  • Must be used in conjunction with the IE FC modular outlet and the TP cords for constructing industrial Ethernet networks (8-core) up to 100 m
  • Minimum order quantity 20 m, maximum length 1000 m
