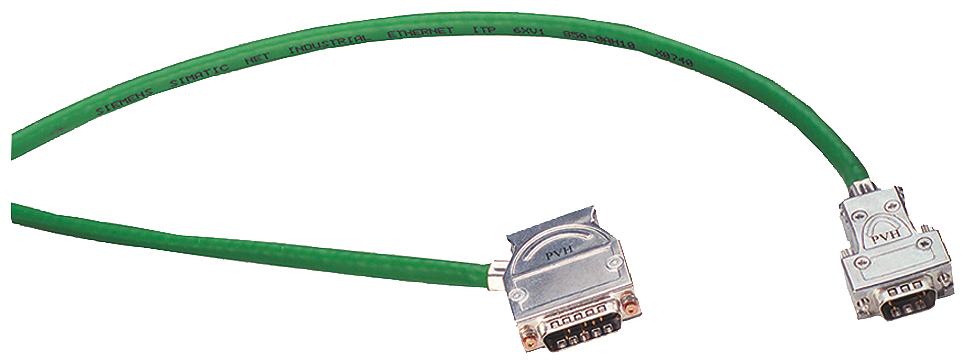

Siemens 6XV18500AH10 General Purpose Standard Unassembled Twisted Pair Cable, 225 VAC, (4) 0.64, 1.5 sq-mm Braided Tin Plated Copper Conductor, 1000 m L
Share Share Print Print
Siemens

Siemens 6XV18500AH10 General Purpose Standard Unassembled Twisted Pair Cable, 225 VAC, (4) 0.64, 1.5 sq-mm Braided Tin Plated Copper Conductor, 1000 m L

Short Description

Experience reliable performance with the Siemens 6XV18500AH10 General Purpose Twisted Pair Cable. Designed for versatility, this unassembled cable features four 0.64 mm conductors made from braided tin-plated copper, ensuring excellent conductivity and durability. Perfect for various applications, it operates at 225 VAC and is built to withstand temperatures from -40 to 70 degrees Celsius. Length: 1000 meters.Enhanced by AI

Siemens Twisted Pair Cable, General Purpose Standard Unassembled, 225 VAC, 4 Conductors, Braided Tin Plated Copper Conductor, 0.64 , 1.5 sq-mm Conductor, 9.2 mm OD, 1000 m Length, PE Insulation, PVC Jacket, Green Jacket, -40 to 70 deg C

MFG #: 6XV18500AH10

EECO #: SIC6XV18500AH10

Brand: Siemens
UPC #: 662643218565
Attributes
Features
Documents
Product Information
Attributes
Length
1000
UNSPSC
26121604
Application
Used in the construction of industrial twisted pair (ITP) networks
Jacket Color
Green
Conductor Size
0.64 , 1.5
Voltage Rating
225
Jacket Material
PVC
Temperature Rating
-40 to 70
Insulation Material
PE
Number of Conductors
4
Type
General Purpose Standard Unassembled
Conductor Type
Braided Tin Plated Copper
Outside Diameter
9.2
Features
  • Type: General Purpose Standard Unassembled Twisted Pair Cable
  • Voltage Rating: 225 VAC
  • Number of Conductors: 4
  • Conductor Material: Braided Tin Plated Copper
  • Conductor Size: 0.64 mm diameter, 1.5 sq-mm cross-section
  • Outer Diameter: 9.2 mm
  • Length: 1000 meters
  • Insulation Material: PE (Polyethylene)
  • Jacket Material: PVC (Polyvinyl Chloride)
  • Jacket Color: Green
  • Operating Temperature Range: -40 to 70 degrees Celsius

Enhanced by AI
