Siemens SIMATIC NET 6XV18300JH10 Shielded Special Bus Cable, 80 VAC, (2, 20 to 1000 m L

Short Description

Enhance your industrial connectivity with the Siemens SIMATIC NET 6XV18300JH10 Shielded Special Bus Cable. Designed for optimal performance, this cable features durable polyethylene insulation and a robust polyurethane jacket, ensuring reliable operation in a wide range of temperatures. Perfect for your automation needs!Enhanced by AI

Siemens SIMATIC NET Special Bus Cable, Shielded, 80 VAC, 2 Conductors, 8 mm OD, 20 to 1000 m Length, 9.5 Ohm Resistance, Polyethylene Insulation, Polyurethane Jacket, Violet Jacket, -40 to 60 deg C

MFG #: 6XV18300JH10

EECO #: SIC6XV18300JH10

Brand: Siemens
UPC #: 662643223774
Attributes
Features
Documents
Product Information
Attributes
Length
20 to 1000
UNSPSC
26121604
Application
Used in chemically and mechanically demanding environments
Jacket Color
Violet
Voltage Rating
80
Jacket Material
Polyurethane
Temperature Rating
-40 to 60
Insulation Material
Polyethylene
Number of Conductors
2
Type
Shielded
Resistance
9.5
Outside Diameter
8
Features
  • 0.0025 dB/m at 9.6 kHz/maximum, 0.004 dB/m at 38.4 kHz/maximum, 0.022 dB/m at 4 MHz/maximum, 0.042 dB/m at 16 MHz/maximum damping ratio per length
  • 150 Ohm rated value, 270 Ohm at 9.6 kHz, 185 Ohm at 38.4 kHz, 150 Ohm at 3 MHz to 20 MHz impedance
  • 10% of the characteristic impedance at 9.6 kHz, 38.4 kHz, 3 to 20 MHz
  • 110 mOhm/m loop resistance per length/maximum
  • 9.5 Ohm/km shield resistance per length/maximum
  • 28.5 pF/m capacity per length/at 1 kHz

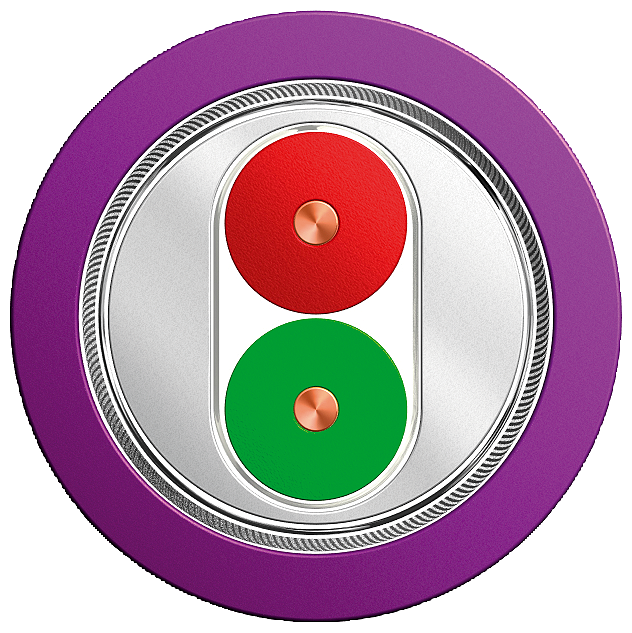

  • Overlapped aluminum clad foil, sheathed in a braided screen of tin plated copper wires design of the shield
  • 0.65 mm of inner conductor, 2.55 mm of the wire insulation, 5.4 mm of the inner sheath of the cable, 8 mm OD of cable sheath
  • PE of the wire insulation, PVC of the inner sheath of the cable, PUR (TPE-U) cable
  • Red/green of the insulation of data wires, violet of cable sheath
  • Oil-resistant according to IEC 60811-2-1 (7 x 24 hr/90 deg C) to mineral Oil-resistant to grease, conditional resistance to water chemical resistance
  • Radiological resistance/to UV radiation resistant
  • Silicone-free
