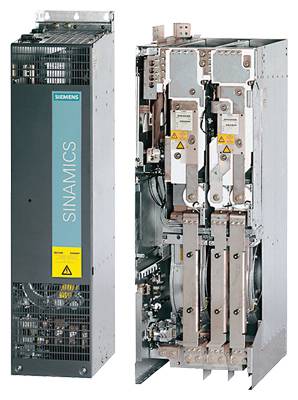

Siemens 6SL33307TG413AA3 SINAMICS 3-Phase Active Line Module, 500 to 690 VAC Input, 750 to 1035 VDC Output, 1270 A Output, 1400 kW
Share Share Print Print
Siemens

Siemens 6SL33307TG413AA3 SINAMICS 3-Phase Active Line Module, 500 to 690 VAC Input, 750 to 1035 VDC Output, 1270 A Output, 1400 kW

Short Description

The self commutated infeed/regenerative feedback units with IGBTs generate a regulated DC link voltage. This means that the connected motor modules are decoupled from the line voltage. Line voltage fluctuations within the permissible supply tolerances have no effect on the motor voltage. If required, the active line modules can also provide reactive power compensation.

Siemens Active Line Module, 3-Phase, Series: SINAMICS, 500 to 690 VAC Input, 750 to 1035 VDC Output, 1270 A Output Current, 1400 kW Power Consumption, 16.5 kW Power Dissipation, Specifications: M12 Screw PE Connection, IP00, 1480 mm H x 704 mm W x 550 mm D Dimensions

MFG #: 6SL33307TG413AA3

EECO #: SIC6SL33307TG413AA3

Brand: Siemens
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121007
Type
3-Phase
Series
SINAMICS
Dimensions
1480 mm H x 704 mm W x 550 mm D
Input Voltage
500 to 690
Output Current
1270
Output Voltage
750 to 1035
Specifications
M12 Screw PE Connection, IP00
Power Dissipation
16.5
Features
  • Active line modules are designed for connection to grounded TN/TT and non-grounded IT supply systems
  • Active line modules are always operated together with the associated active interface modules
  • It include the necessary pre-charging circuit as well as a clean power filter
