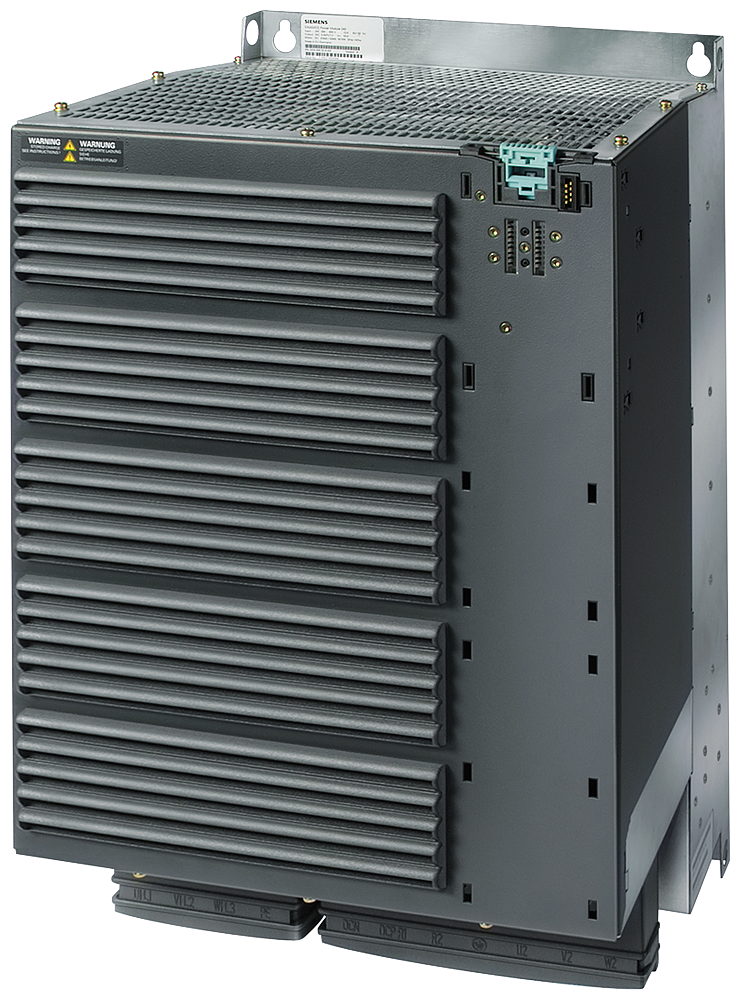

Siemens 6SL32240BE345AA0 SINAMICS G120 3-Phase Power Module With Integrated Line Filter, Built-In Braking Chopper, 380 to 480 VAC Input, 400 VAC Output, 115/129 A Input, 180 A Output
Share Share Print Print
Siemens

Siemens 6SL32240BE345AA0 SINAMICS G120 3-Phase Power Module With Integrated Line Filter, Built-In Braking Chopper, 380 to 480 VAC Input, 400 VAC Output, 115/129 A Input, 180 A Output

Short Description

Maximize your system's performance with the Siemens 6SL32240BE345AA0 SINAMICS G120 3-Phase Power Module, featuring an integrated line filter and built-in braking chopper for efficient power management. Designed for 380 to 480 VAC input and 400 VAC output, this module ensures high efficiency and reliability in your operations.Enhanced by AI

Siemens Power Module, 3-Phase, Series: SINAMICS G120, 380 to 480 VAC Input, 400 VAC Output, 115/129 A Input Current, 180 A Output, 1.42 kW, 60 dB Sound Pressure, 97% Efficiency, IP20/Open Enclosure, 47 to 63 Hz, -10 to 50 deg C, 934 mm H x 350 mm W x 316 mm D

MFG #: 6SL32240BE345AA0

EECO #: SIC6SL32240BE345AA0

Brand: Siemens
UPC #: 662643434545
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121007
Temperature Rating
-10 to 50
Type
3-Phase
Series
SINAMICS G120
Dimensions
934 mm H x 350 mm W x 316 mm D
Input Current
115/129
Input Voltage
380 to 480
Output Current
180
Output Voltage
400
Specifications
60 dB Sound Pressure, 97% Efficiency, IP20/Open Enclosure, 47 to 63 Hz
Power Dissipation
1.42
Features
  • 115 A input rated current with integrated line reactor, 129 A input rated current without integrated line reactor
  • Without control unit and BOP
  • 110 A low overload, 90 A high overload, 180 A maximum output current
  • 0 to 40 deg C low overload, -10 to 50 deg C high overload ambient
