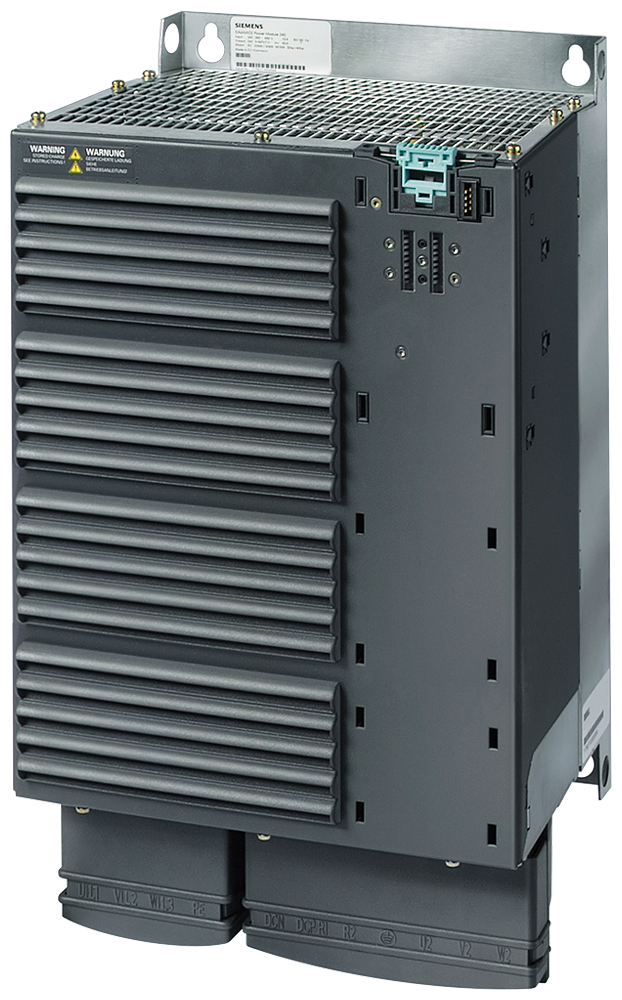

Siemens 6SL32240BE330AA0 SINAMICS G120 3-Phase Power Module With Integrated Line Filter, Built-In Braking Chopper, 380 to 480 VAC Input, 400 VAC Output, 78/88 A Input, 124 A Output
Share Share Print Print
Siemens

Siemens 6SL32240BE330AA0 SINAMICS G120 3-Phase Power Module With Integrated Line Filter, Built-In Braking Chopper, 380 to 480 VAC Input, 400 VAC Output, 78/88 A Input, 124 A Output

Short Description

Enhance your industrial applications with the Siemens 6SL32240BE330AA0 SINAMICS G120 3-Phase Power Module. Featuring an integrated line filter and built-in braking chopper, this robust module delivers efficient performance with a 97% efficiency rating and a compact design for versatile installation.Enhanced by AI

Siemens Power Module, 3-Phase, Series: SINAMICS G120, 380 to 480 VAC Input, 400 VAC Output, 78/88 A Input Current, 124 A Output, 0.99 kW, 60 dB Sound Pressure, 97% Efficiency, IP20/Open Enclosure, 47 to 63 Hz, -10 to 50 deg C, 635 mm H x 275 mm W x 204 mm D

MFG #: 6SL32240BE330AA0

EECO #: SIC6SL32240BE330AA0

Brand: Siemens
UPC #: 662643434507
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121007
Temperature Rating
-10 to 50
Type
3-Phase
Series
SINAMICS G120
Dimensions
635 mm H x 275 mm W x 204 mm D
Input Current
78/88
Input Voltage
380 to 480
Output Current
124
Output Voltage
400
Specifications
60 dB Sound Pressure, 97% Efficiency, IP20/Open Enclosure, 47 to 63 Hz
Power Dissipation
0.99
Features
  • 78 A input rated current with integrated line reactor, 88 A input rated current without integrated line reactor
  • Without control unit and BOP
  • 75 A low overload, 60 A high overload, 124 A maximum output current
  • 0 to 40 deg C low overload, -10 to 50 deg C high overload ambient
