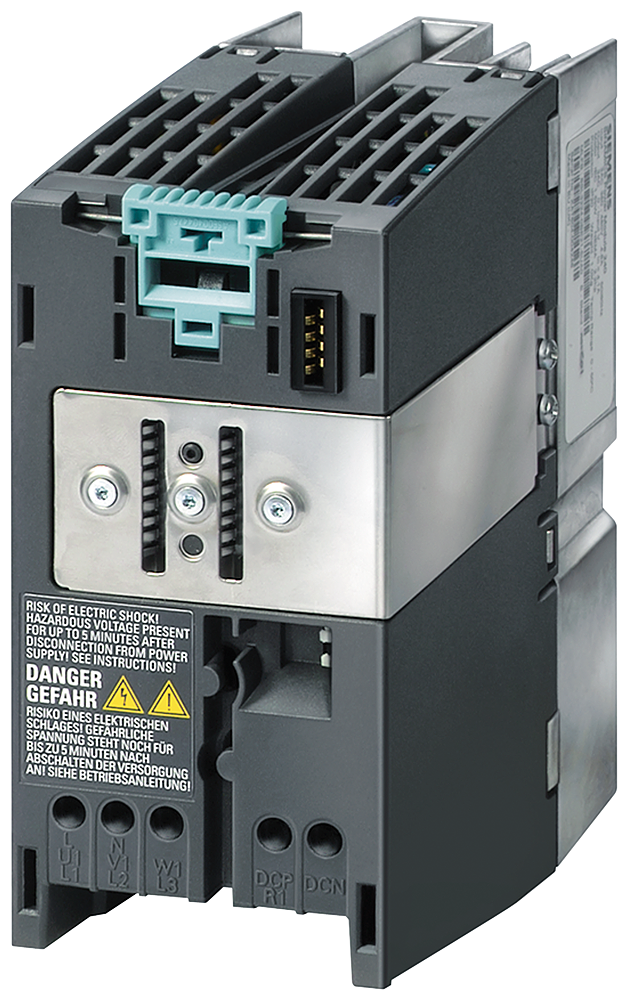

Siemens 6SL32240BE155UA0 SINAMICS G120 3-Phase Power Module With Built-In Braking Chopper, 380 to 480 VAC Input, 400 VAC Output, 1.8/2.1 A Input, 3.4 A Output
Share Share Print Print
Siemens

Siemens 6SL32240BE155UA0 SINAMICS G120 3-Phase Power Module With Built-In Braking Chopper, 380 to 480 VAC Input, 400 VAC Output, 1.8/2.1 A Input, 3.4 A Output

Short Description

Enhance your industrial automation with the Siemens 6SL32240BE155UA0 SINAMICS G120 3-Phase Power Module. This efficient power module features a built-in braking chopper, delivering reliable performance with a 97% efficiency rate. Perfect for various applications, it supports a wide input range and compact design, making it an ideal choice for your power needs.Enhanced by AI

Siemens Power Module, 3-Phase, Series: SINAMICS G120, 380 to 480 VAC Input, 400 VAC Output, 1.8/2.1 A Input Current, 3.4 A Output, 0.1 kW, 45 dB Sound Pressure, 97% Efficiency, IP20/Open Enclosure, 47 to 63 Hz, -10 to 50 deg C, 173 mm H x 73 mm W x 145 mm D

MFG #: 6SL32240BE155UA0

EECO #: SIC6SL32240BE155UA0

Brand: Siemens
UPC #: 662643434286
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121007
Temperature Rating
-10 to 50
Type
3-Phase
Series
SINAMICS G120
Dimensions
173 mm H x 73 mm W x 145 mm D
Input Current
1.8/2.1
Input Voltage
380 to 480
Output Current
3.4
Output Voltage
400
Specifications
45 dB Sound Pressure, 97% Efficiency, IP20/Open Enclosure, 47 to 63 Hz
Power Dissipation
0.1
Features
  • 1.8 A input rated current with integrated line reactor, 2.1 A input rated current without integrated line reactor
  • Without integrated line filter
  • 1.7 A low/high overload, 3.4 A maximum output current
  • 0 to 40 deg C low overload, -10 to 50 deg C high overload ambient
