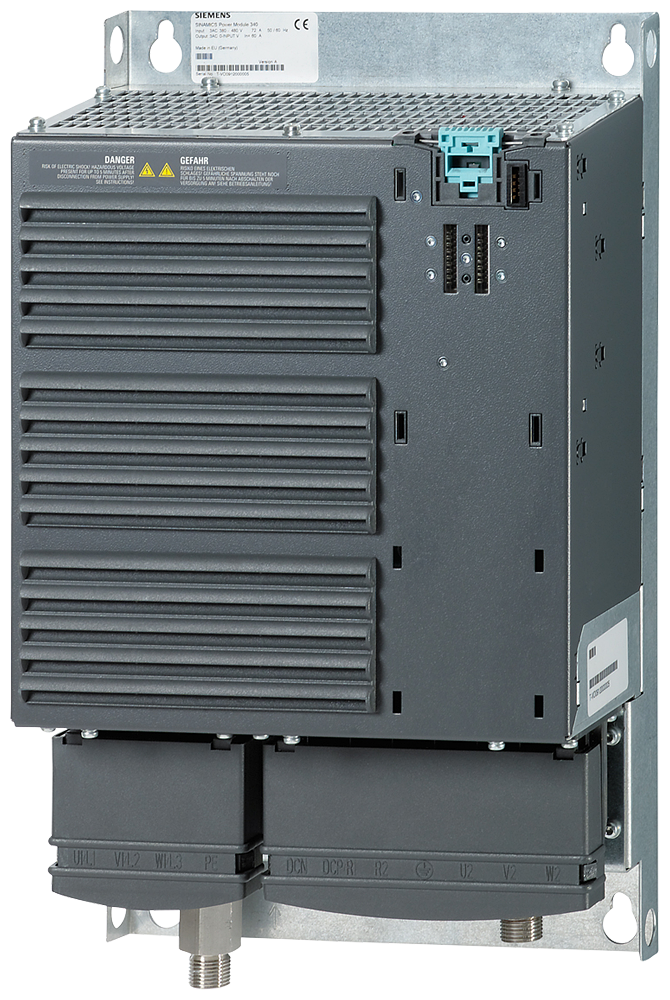

Siemens 6SL32101SE245UA0 SINAMICS S110 3-Phase Power Module, 380 to 480 VAC Input, 47/53 A Input, 76 A Output
Share Share Print Print
Siemens

Siemens 6SL32101SE245UA0 SINAMICS S110 3-Phase Power Module, 380 to 480 VAC Input, 47/53 A Input, 76 A Output

Short Description

Maximize your industrial efficiency with the Siemens 6SL32101SE245UA0 SINAMICS S110 3-Phase Power Module. Designed for robust performance, it supports a wide input voltage range and delivers reliable output to power your operations seamlessly.Enhanced by AI

Siemens Power Module, 3-Phase, Series: SINAMICS S110, 380 to 480 VAC Input, 47/53 A Input Current, 76 A Output, 0.51 kW, 60 dB Sound Pressure, IP20/Open Enclosure, 50/60 Hz, 32 to 104 deg F, 418.3 mm H x 275 mm W x 203.5 mm D

MFG #: 6SL32101SE245UA0

EECO #: SIC6SL32101SE245UA0

Brand: Siemens
UPC #: 662643259544
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121007
Application
Handling Equipment, Feed and Withdrawal Equipment, Stacking Unit, Automatic Assembly Machine, Laboratory Automation System, Tool Changing Mechanism, Adjuster and Actuator Axe, Tracking Equipment, Medical Technology and Health Systems
Temperature Rating
32 to 104
Type
3-Phase
Series
SINAMICS S110
Dimensions
418.3 mm H x 275 mm W x 203.5 mm D
Input Current
47/53
Input Voltage
380 to 480
Output Current
76
Specifications
60 dB Sound Pressure, IP20/Open Enclosure, 50/60 Hz
Power Dissipation
0.51
Features
  • 47 A rated current with integrated line reactor, 53 A rated current without integrated line reactor
  • Without integrated line filter
  • 58 A for S6 duty, 45 A IN, 40 A high overload, 76 A maximum output current
