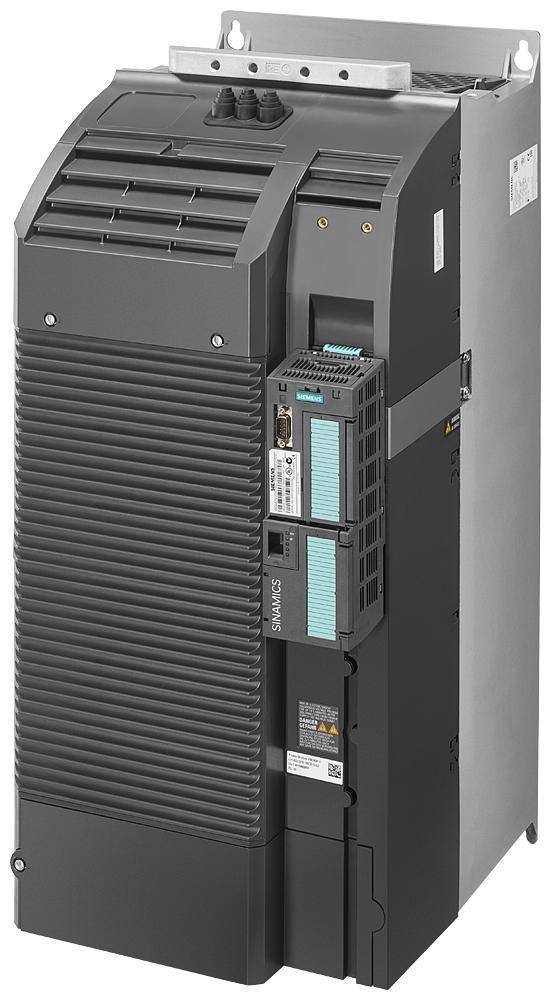

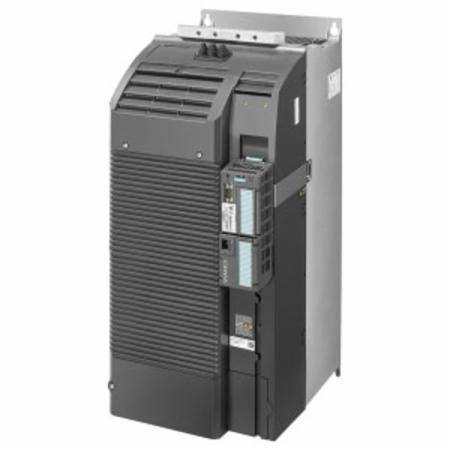

Siemens 6SL32101RE325UL0 Power Module, 380 to 480 V Input, 400, 480 V Output, 218, 242 A Input, 338 A Output, 110, 132 kW

Short Description

380 to 480 VAC 47 to 63 Hz 3-Phase 242 A Low/218 A High Input, 400 VAC 338 A 132 kW Low/110 kW High Output, IP20, F Frame, Power Module without Integrated Line Filter

Siemens, 6SL32101RE325UL0, Power Module, 380 to 480 V Input, 400, 480 V Output, 218, 242 A Input Current, 338 A Output Current, 110, 132 kW Power Consumption, 2.97 kW Power Dissipation, Specifications: 47 to 63 Hz Frequency, 3 ph Phase, 300 m Shielded 450 m Unshielded Cable Length, IP20 Enclosure Type, FSF Frame, -20 to 50 deg C, 708 mm H x 305 mm W x 357 mm D Dimensions
MFG #: 6SL32101RE325UL0

EECO #: SIC6SL32101RE325UL0

Brand: Siemens
UPC #: 804766373039
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121007
Approval
UL, CUL, CE, C-Tick (RCM), SEMI F47, KCC
Temperature Rating
-20 to 50
Dimensions
708 mm H x 305 mm W x 357 mm D
Input Current
218, 242
Input Voltage
380 to 480
Output Current
338
Output Voltage
400, 480
Specifications
47 to 63 Hz Frequency, 3 ph Phase, 300 m Shielded 450 m Unshielded Cable Length, IP20 Enclosure Type, FSF Frame
Power Dissipation
2.97
Features
  • The New PM240P-2 Power Modules are Based on a New Hardware Platform
  • This Permits a Higher Power Density to be Achieved
  • PM240P-2 Power Modules Do Not have an Integrated Braking Chopper
  • PM240P-2 Power Modules are also Suitable for Use in Safety-Related Applications
  • RoHS Compliant
