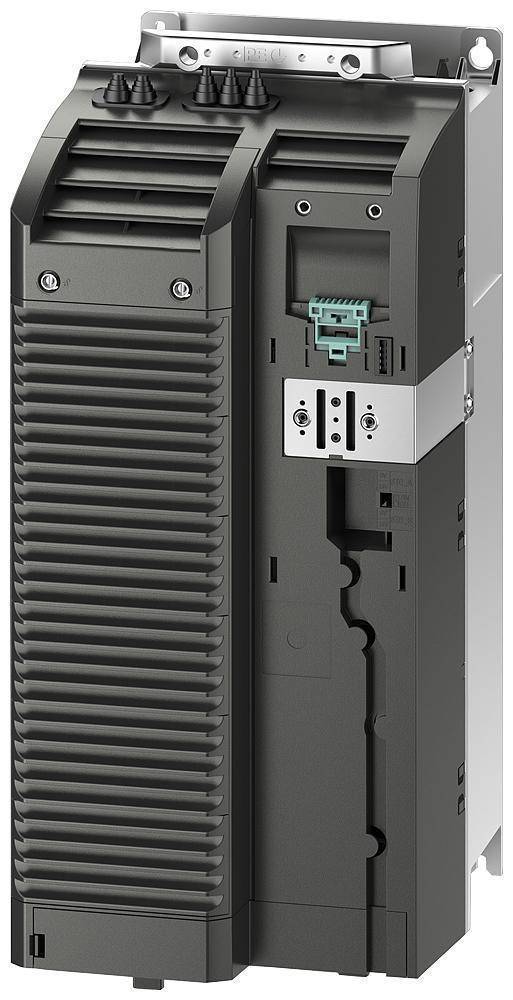

Siemens 6SL32101RE275UL0 Power Module, 380 to 480 V Input, 400, 480 V Output, 62, 70 A Input, 102 A Output, 30, 37 kW

Short Description

380 to 480 VAC 47 to 63 Hz 3-Phase 70 A Low/62 A High Input, 400 VAC 102 A 37 kW Low/30 kW High Output, IP20, D Frame, Power Module without Integrated Line Filter

Siemens, 6SL32101RE275UL0, Power Module, 380 to 480 V Input, 400, 480 V Output, 62, 70 A Input Current, 102 A Output Current, 30, 37 kW Power Consumption, 1.12 kW Power Dissipation, Specifications: 47 to 63 Hz Frequency, 3 ph Phase, Screw Terminal, 200 m Shielded 300 m Unshielded Cable Length, IP20 Enclosure Type, FSD Frame, -20 to 50 deg C, 472 mm H x 200 mm W x 237 mm D Dimensions
MFG #: 6SL32101RE275UL0

EECO #: SIC6SL32101RE275UL0

Brand: Siemens
UPC #: 804766373008
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121007
Approval
UL, CUL, CE, C-Tick (RCM), SEMI F47, KCC
Temperature Rating
-20 to 50
Dimensions
472 mm H x 200 mm W x 237 mm D
Input Current
62, 70
Input Voltage
380 to 480
Output Current
102
Output Voltage
400, 480
Specifications
47 to 63 Hz Frequency, 3 ph Phase, Screw Terminal, 200 m Shielded 300 m Unshielded Cable Length, IP20 Enclosure Type, FSD Frame
Power Dissipation
1.12
Features
  • The New PM240P-2 Power Modules are Based on a New Hardware Platform
  • This Permits a Higher Power Density to be Achieved
  • PM240P-2 Power Modules Do Not have an Integrated Braking Chopper
  • PM240P-2 Power Modules are also Suitable for Use in Safety-Related Applications
  • RoHS Compliant
