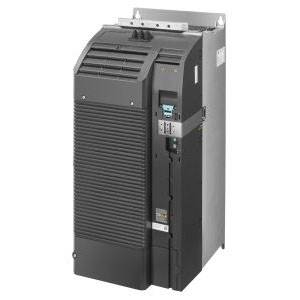

PrintSiemens AG 6SL32101PE321AL0 Power Module
380 to 480 VAC 3-Phase, 198/189 A Input, 400 VAC 205/178 A 110/90 kW Output, F-Frame, Power Module
Power Module; Input Voltage Range 380 to 480 Volt AC; Frequency Rating 47 to 63 Hertz (Line), 2 Kilohertz (Pulse); Input Current 198 Amp (Low Overload), 189 Amp (High Overload); Output Voltage 400 Volt AC; Output Current 205 Amp (Low Overload), 178 Amp (High Overload); Output Power 110 Kilowatt IEC/150 HP NEC (Low Overload)/90 Kilowatt IEC/125 HP NEC (High Overload); Operating Temperature 4 to 104 Deg F (Low Overload), 4 to 122 Deg F (High Overload); Size 305 Millimeter Width x 357 Millimeter Depth x 708 Millimeter Height; Approval UL, CUL, CE, C-Tick (RCM), SEMI F47; RoHS/Reach/WEEE Compliant; Number of Phases 3; Connection Type M10 Bolt; Cooling Type Internal Air Cooling; Frame Size F; Enclosure Rating IP20; Power Factor 0.95; Offset Factor 0.99; Efficiency 0.99; Sound Pressure Level 68 Decibel
EECO #: SIC6SL32101PE321AL0
Part of 1 Product Family.
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $14,549.99 |
|
Slqt |
|
| 1 | $14,549.99 |
|
Stpk |
|
| 1 | $14,549.99 |
|
Unit |
|
| 1 | $14,549.99 |
