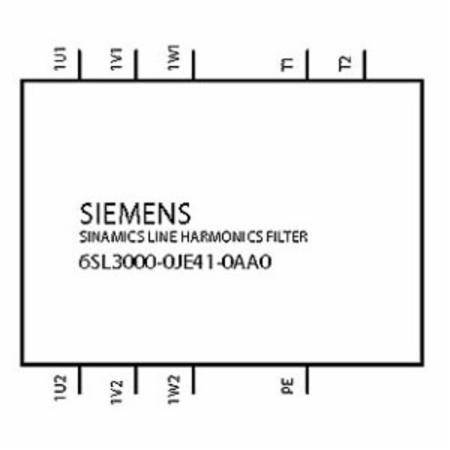

Siemens AG 6SL30000JE410AA0 Line Harmonic Filter

Short Description

380 to 480 VAC 50/60 Hz 3-Phase, 900 A, 560 kW, IP21, Line Harmonic Filter

Line Harmonic Filter; Voltage Rating 380 to 480 Volt AC; Current Rating 900 Amp; Frequency Rating 50/60 Hertz; Circuit Type 3-Phase; Enclosure IP21; Size 1000 Millimeter Width x 540 Millimeter Depth x 1700 Millimeter Height; Application 560 Kilowatt Power Module/Chassis Unit of SINAMICS G130 Drive Converter; RoHS Compliant; Finish RAL 7035; Power Loss 5.6 Kilowatt; Applicable Standard IEEE 519-1992

MFG #: 6SL30000JE410AA0

EECO #: SIC6SL30000JE410AA0

Brand: Siemens
UPC #: 662643432275
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121000
Application
560 Kilowatt Power Module/Chassis Unit of SINAMICS G130 Drive Converter
Circuit Type
3-Phase
Current Rating
900 Amp
Voltage Rating
380 to 480 VoltAC
Frequency Rating
50/60 Hertz
Enclosure
IP21
Size
1000 Millimeter Width x 540 Millimeter Depth x 1700 Millimeter Height
Features
  • Harmonics Filters Reduce the Low Frequency Harmonic Effects of Converters to a Level that can Otherwise Only be Achieved Using 12-Pulse Rectifiers
  • Filters are Supplied as Stand-Alone Components in a Rugged Housing
  • They are Installed between the Customer's Low Voltage Distribution Panel and the Converter
  • The Voltage is Disconnected and Fused in the Customer's Low Voltage Switch Gear, as is the Power Supply Cable
  • The Line Harmonics Filters Have No Fans, this Means that No External Auxiliary Power Supply is Required
  • Equipped with a Floating Thermostatic Switch, Which can be Monitored Externally, for the Monitoring Thermal Overload
  • RoHS Compliant
