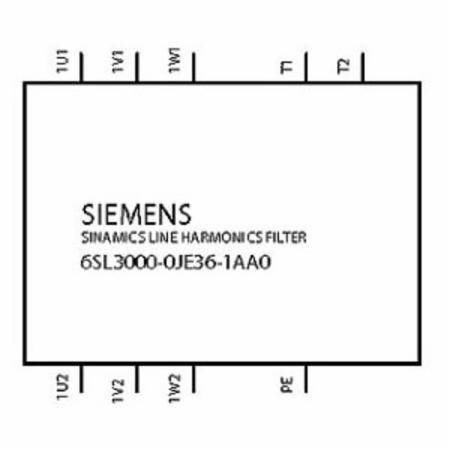

Siemens AG 6SL30000JE361AA0 Line Harmonic Filter

Name: Siemens AG 6SL30000JE361AA0 Line Harmonic Filter
Brand: Siemens
SKU: SIC6SL30000JE361AA0
Availability: InStock

Short Description

380 to 480 VAC 50/60 Hz 3-Phase, 500 A, 160 to 315 kW, IP21, Line Harmonic Filter

Line Harmonic Filter; Voltage Rating 380 to 480 Volt AC; Current Rating 500 Amp; Frequency Rating 50/60 Hertz; Circuit Type 3-Phase; Enclosure IP21; Size 600 Millimeter Width x 540 Millimeter Depth x 1700 Millimeter Height; Application 160 to 315 Kilowatt Power Module/Chassis Unit of SINAMICS G130 Drive Converter; RoHS Compliant; Finish RAL 7035; Power Loss 3.09 Kilowatt; Applicable Standard IEEE 519-1992

MFG #: 6SL30000JE361AA0

EECO #: SIC6SL30000JE361AA0 SIC6SL30000JE361AA0

Brand: Siemens

UPC #: 662643432251

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

39121000

Application

160 to 315 Kilowatt Power Module/Chassis Unit of SINAMICS G130 Drive Converter

Circuit Type

3-Phase

Current Rating

500 Amp

Voltage Rating

380 to 480 VoltAC

Frequency Rating

50/60 Hertz

Enclosure

IP21

Size

600 Millimeter Width x 540 Millimeter Depth x 1700 Millimeter Height

Features

Harmonics Filters Reduce the Low Frequency Harmonic Effects of Converters to a Level that can Otherwise Only be Achieved Using 12-Pulse Rectifiers
Filters are Supplied as Stand-Alone Components in a Rugged Housing
They are Installed between the Customer's Low Voltage Distribution Panel and the Converter
The Voltage is Disconnected and Fused in the Customer's Low Voltage Switch Gear, as is the Power Supply Cable
The Line Harmonics Filters Have No Fans, this Means that No External Auxiliary Power Supply is Required
Equipped with a Floating Thermostatic Switch, Which can be Monitored Externally, for the Monitoring Thermal Overload
RoHS Compliant
