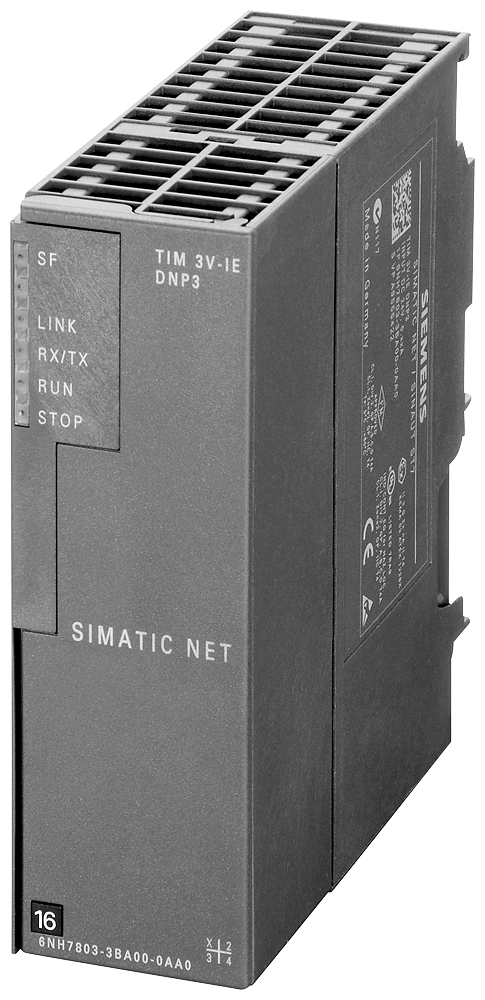

Siemens 6NH78033BA000AA0 TIM 3V-IE Communication Module With RS232/RJ45 Interface, 24 VDC, 0.2 A, 9.6 to 38.4 kbps, 10 to 100 Mbps Communication
Share Share Print Print
Siemens

Siemens 6NH78033BA000AA0 TIM 3V-IE Communication Module With RS232/RJ45 Interface, 24 VDC, 0.2 A, 9.6 to 38.4 kbps, 10 to 100 Mbps Communication

Short Description

Elevate your communication capabilities with the Siemens 6NH78033BA000AA0 TIM 3V-IE Communication Module. Featuring versatile RS232/RJ45 interfaces and robust transmission rates, this module is designed to enhance connectivity and efficiency in your systems.Enhanced by AI

Siemens Communication Module, Series: TIM 3V-IE, 24 VDC, 0.2 A, 5.8 W Power Dissipation, 9.6 to 38.4 kbps, 10 to 100 Mbps Communication Rate, 9-Pin Sub-D Connector Terminal, 0 to 60 deg C, 125 mm H x 40 mm W x 120 mm D Dimensions

MFG #: 6NH78033BA000AA0

EECO #: SIC6NH78033BA000AA0

Brand: Siemens
UPC #: 040892786484
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Application
For SIMATIC S7-300 PLC
Terminal Type
9-Pin Sub-D Connector
Voltage Rating
24
Temperature Rating
0 to 60
Series
TIM 3V-IE
Dimensions
125 mm H x 40 mm W x 120 mm D
Amperage Rating
0.2
Power Dissipation
5.8
Features
  • RS232 interface for DNP3 communication via a classic WAN and an RJ45 interface for DNP3 communication via a IP based network
  • 10 to 100 Mbps for industrial Ethernet, 9.6 to 38.4 kbps according to RS232
