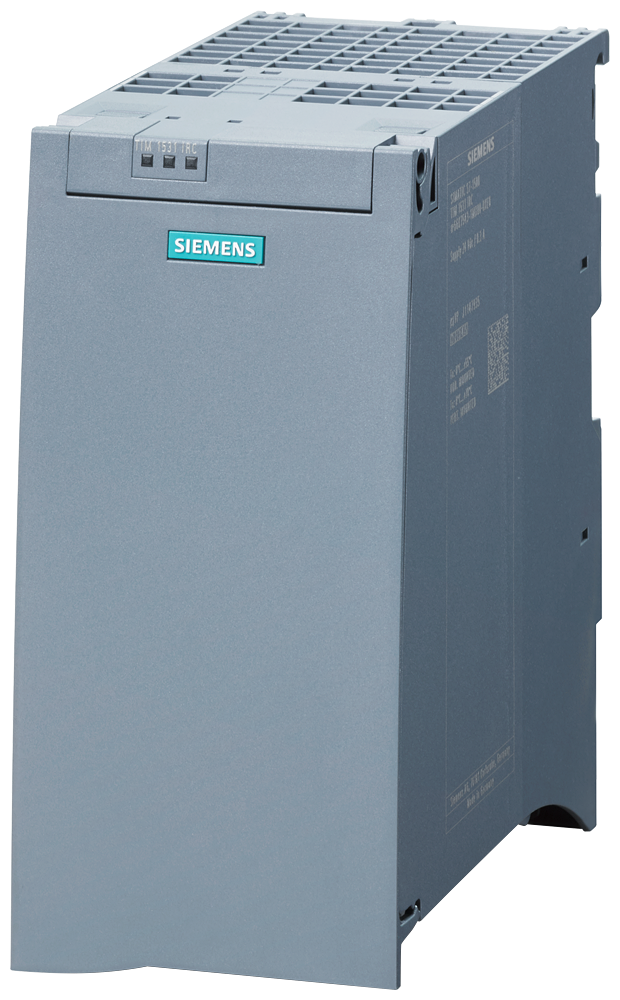

Siemens 6GK75431MX000XE0 TIM 1531 IRC Communication Module With RS232/RS485 and (3) RJ45 Interface, 24 VDC, 0.3 A, 300 to 115200 bps, 10 to 100/10 to 1000 Mbps Communication
Siemens 6GK75431MX000XE0 TIM 1531 IRC Communication Module With RS232/RS485 and (3) RJ45 Interface, 24 VDC, 0.3 A, 300 to 115200 bps, 10 to 100/10 to 1000 Mbps Communication
Siemens 6GK75431MX000XE0 TIM 1531 IRC Communication Module With RS232/RS485 and (3) RJ45 Interface, 24 VDC, 0.3 A, 300 to 115200 bps, 10 to 100/10 to 1000 Mbps Communication
Siemens 6GK75431MX000XE0 TIM 1531 IRC Communication Module With RS232/RS485 and (3) RJ45 Interface, 24 VDC, 0.3 A, 300 to 115200 bps, 10 to 100/10 to 1000 Mbps Communication
Share Share Print Print
Siemens

Siemens 6GK75431MX000XE0 TIM 1531 IRC Communication Module With RS232/RS485 and (3) RJ45 Interface, 24 VDC, 0.3 A, 300 to 115200 bps, 10 to 100/10 to 1000 Mbps Communication

Short Description

Enhance your communication capabilities with the Siemens 6GK75431MX000XE0 TIM 1531 IRC Communication Module. Featuring versatile RS232/RS485 connectivity and three RJ45 interfaces, this module supports a wide range of communication speeds and is designed for reliable performance in various environments.Enhanced by AI

Siemens Communication Module, Series: TIM 1531 IRC, 24 VDC, 0.3 A, 3.9 W Power Dissipation, 300 to 115200 bps, 10 to 100/10 to 1000 Mbps Communication Rate, 9-Pin Sub-D Connector Terminal, 0 to 50 deg C Vertical, 0 to 70 deg C Horizontal, 147 mm H x 70 mm W x 129 mm D Dimensions

MFG #: 6GK75431MX000XE0

EECO #: SIC6GK75431MX000XE0

Brand: Siemens
UPC #: 804766525957
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Application
For SIMATIC S7-1500, S7- 400 and S7-300 PLC
Terminal Type
9-Pin Sub-D Connector
Voltage Rating
24
Temperature Rating
0 to 50 deg C Vertical, 0 to 70 deg C Horizontal
Series
TIM 1531 IRC
Dimensions
147 mm H x 70 mm W x 129 mm D
Amperage Rating
0.3
Power Dissipation
3.9
Features
  • RJ45 interfaces communication via IP based networks (WAN/LAN) and a RS232/RS485 interface for communication via classic WAN networks
  • 10 to 1000 Mbps at the 1st interface, 10 to 100 Mbps at the 2nd interface/3rd interface, 300 to 115200 bps according to RS232
