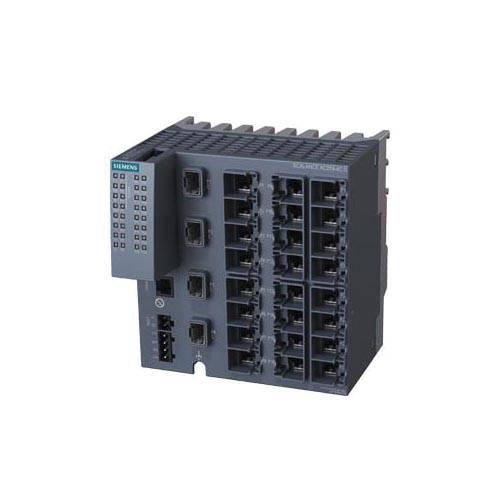

Siemens SCALANCE 6GK52244GS002TC2 XC224-4C G (E/IP) Managed IE Switch, RJ45 Port, Telnet/HRP/MRP/MSTP/PRP/RSTP/STP/Telnet/HTTP/HTTPS/TFTP/FTP/BOOTP/DCP/LLDP/SNMP v1/SNMP v2/SNMP v3/IGMP (Snooping/Querier) Protocol
Share Share Print Print
Siemens

Siemens SCALANCE 6GK52244GS002TC2 XC224-4C G (E/IP) Managed IE Switch, RJ45 Port, Telnet/HRP/MRP/MSTP/PRP/RSTP/STP/Telnet/HTTP/HTTPS/TFTP/FTP/BOOTP/DCP/LLDP/SNMP v1/SNMP v2/SNMP v3/IGMP (Snooping/Querier) Protocol

Short Description

Enhance your industrial network with the Siemens SCALANCE XC224-4C G Managed IE Switch. Designed for optimal performance and reliability, this switch supports a wide range of protocols and offers robust connectivity options for seamless integration into your operations.Enhanced by AI

Siemens SCALANCE Managed IE Switch, Series: XC224-4C G (E/IP), RJ45 Port, Telnet/HRP/MRP/MSTP/PRP/RSTP/STP/Telnet/HTTP/HTTPS/TFTP/FTP/BOOTP/DCP/LLDP/SNMP v1/SNMP v2/SNMP v3/IGMP (Snooping/Querier) Protocol, 10/100/1000 Mbps Forwarding Rate, 2-Pole/4-Pole Terminal Block/RJ11 Connector, 24 VDC Supply, IP20 Enclosure, Rack Mounting, 140 mm Width, 150 mm Height, -40 to 70 deg C, Environmental Conditions: 95% at 25 deg C Relative Humidity

MFG #: 6GK52244GS002TC2

EECO #: SIC6GK52244GS002TC2

Brand: Siemens
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43222612
Power Supply
24
Mounting Type
Rack
Connector Type
2-Pole/4-Pole Terminal Block/RJ11
Enclosure Type
IP20
Temperature Rating
-40 to 70
Environmental Conditions
95% at 25 deg C Relative Humidity
Width
140
Height
150
Series
XC224-4C G (E/IP)
Protocol
Telnet/HRP/MRP/MSTP/PRP/RSTP/STP/Telnet/HTTP/HTTPS/TFTP/FTP/BOOTP/DCP/LLDP/SNMP v1/SNMP v2/SNMP v3/IGMP (Snooping/Querier)
Features
  • Rugged enclosure in SIMATIC S7-1500 format, for mounting on standard DIN rails and SIMATIC S7-300 and S7-1500 DIN rails, or for direct wall mounting
  • Electrical or optical connection to stations or networks according to port characteristics of the devices
  • Combo ports for the flexible use of interfaces - a combo port consists of an electric port and an SFP slot, only one of the two ports can ever be active, if an SFP plug-in transceiver is inserted, the electric port is deactivated
  • Rugged station connections with industry standard RJ45 connectors that offer additional strain and bending strain relief thanks to latching on the enclosure
  • Redundant power supply
  • Console port for direct access to device
  • Display of comprehensive operating mode and status information via LEDs and selection pushbuttons
  • Signaling contact for connecting to an error signaling system
  • Grounding screw for external ground connection
  • Flexible use in the automation environment due to switch over between the two industry protocols PROFINET and EtherNet/IP in the device
  • Integration into the SINEC NMS network management system for integrated network diagnostics with central firmware management
  • Virtual LANs (VLAN) for easy structuring of large networks into smaller, logical subnetworks, reasons for the subdivision into logical subnetworks are for example separation of the ethernet networks to reduce the broadcast load, separation of sensitive areas from the main network and subdivision of the network into logical working groups
  • By learning the multicast sources and destinations (IGMP, internet group management protocol snooping), SCALANCE XC-200 switches can also filter multicast data traffic and thus limit the load on the network
  • Integrated security functions offer protection against unauthorized network access and configuration (e.g. authentication via IEEE 802.1X/RADIUS)
  • The PoE versions support power over ethernet (PoE), this allows nodes such as WLAN access points (e.g. SCALANCE W) or cameras (e.g. SIMATIC MV500) to be supplied with power in addition to data, depending on the version, the PoE switches are supplied with power either via 24 VDC or via 54 VDC
  • Technical inspectorate certification according to IEC 62443-4-2 for implementing secure system architectures
