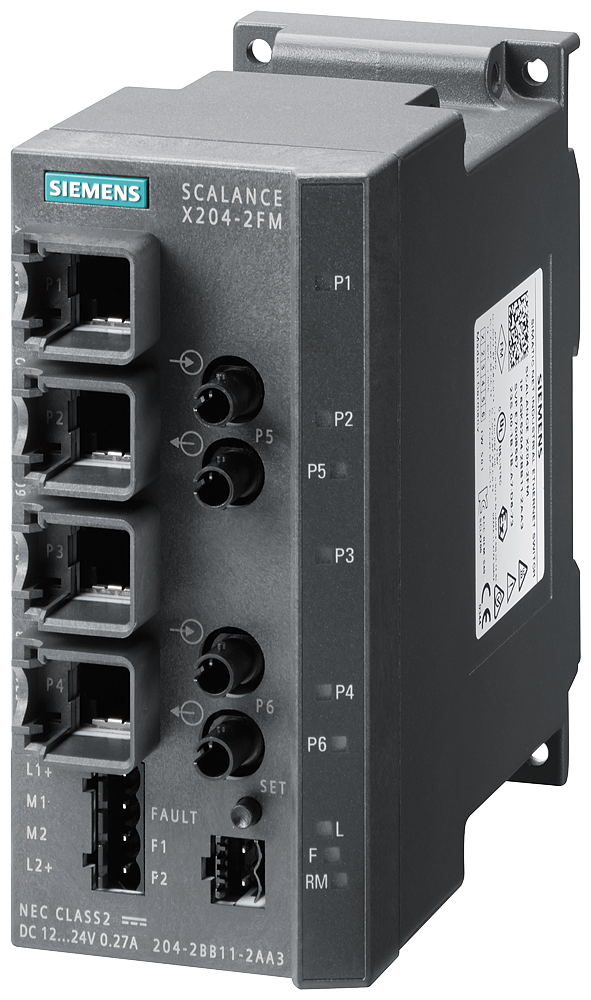

Siemens SCALANCE X204-2FM 6GK52042BB112AA3 Compact Managed Ethernet Switch, 10/100 Mbps, 100 Mbps Multi-Mode Interface, (4) RJ45 Port, Telnet/HTTP/HTTPS/TFTP/FTP/DCP/LLDP/SNMP v1/SNMP v2/SNMP v3/HRP/MRP/SSH/SNTP Protocol
Share Share Print Print
Siemens

Siemens SCALANCE X204-2FM 6GK52042BB112AA3 Compact Managed Ethernet Switch, 10/100 Mbps, 100 Mbps Multi-Mode Interface, (4) RJ45 Port, Telnet/HTTP/HTTPS/TFTP/FTP/DCP/LLDP/SNMP v1/SNMP v2/SNMP v3/HRP/MRP/SSH/SNTP Protocol

Short Description

Enhance your network performance with the Siemens SCALANCE X204-2FM Compact Managed Ethernet Switch. Designed for reliability and versatility, it features 10/100 Mbps connectivity, multiple protocol support, and robust environmental resilience, making it the ideal solution for demanding industrial applications.Enhanced by AI

Siemens SCALANCE X204-2FM Ethernet Switch, Compact Managed, 10/100 Mbps, 100 Mbps Multi-Mode Interface, (4) RJ45 Port, Protocol: Telnet/HTTP/HTTPS/TFTP/FTP/DCP/LLDP/SNMP v1/SNMP v2/SNMP v3/HRP/MRP/SSH/SNTP, C-Plug/Terminal Block Connectivity, (2) BFOC Connector, 18 to 32 VDC Supply, IP30, DIN Rail/Wall Mount, 60 mm Width, 125 mm Height, -40 to 60 deg C, Environmental Conditions: -40 to 70 deg C Storage, 95% Non-Condensing Ambient Relative Humidity

MFG #: 6GK52042BB112AA3

EECO #: SIC6GK52042BB112AA3

Brand: Siemens
UPC #: 887621882662
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43222612
Interface
10/100 Mbps, 100 Mbps Multi-Mode
Application
Industrial Applications
Power Supply
18 to 32
Mounting Type
DIN Rail/Wall
Connector Type
(2) BFOC
Enclosure Type
IP30
Temperature Rating
-40 to 60
Environmental Conditions
-40 to 70 deg C Storage, 95% Non-Condensing Ambient Relative Humidity
Type
Compact Managed
Width
60
Height
125
Includes
Electronic CD-ROM Manual and C-Plug
Protocol
Telnet/HTTP/HTTPS/TFTP/FTP/DCP/LLDP/SNMP v1/SNMP v2/SNMP v3/HRP/MRP/SSH/SNTP
Connectivity
C-Plug/Terminal Block
Features
  • Compact Managed Ethernet Switch with dimensions: 60 mm Width x 125 mm Height
  • Data transmission rates: 10/100 Mbps
  • 100 Mbps Multi-Mode Interface for enhanced connectivity
  • Equipped with (4) RJ45 Ports for versatile network connections
  • Supports multiple protocols: Telnet, HTTP, HTTPS, TFTP, FTP, DCP, LLDP, SNMP v1/v2/v3, HRP, MRP, SSH, SNTP
  • C-Plug/Terminal Block Connectivity for flexible installation options
  • Includes (2) BFOC Connectors for optimal fiber connection
  • Power supply requirement: 18 to 32 VDC
  • IP30 rated for protection against dust ingress
  • Mounting options: DIN Rail and Wall Mount compatible
  • Operating temperature range: -40 to 60 degrees Celsius
  • Storage temperature range: -40 to 70 degrees Celsius
  • Designed to operate in environments with up to 95% non-condensing ambient relative humidity
