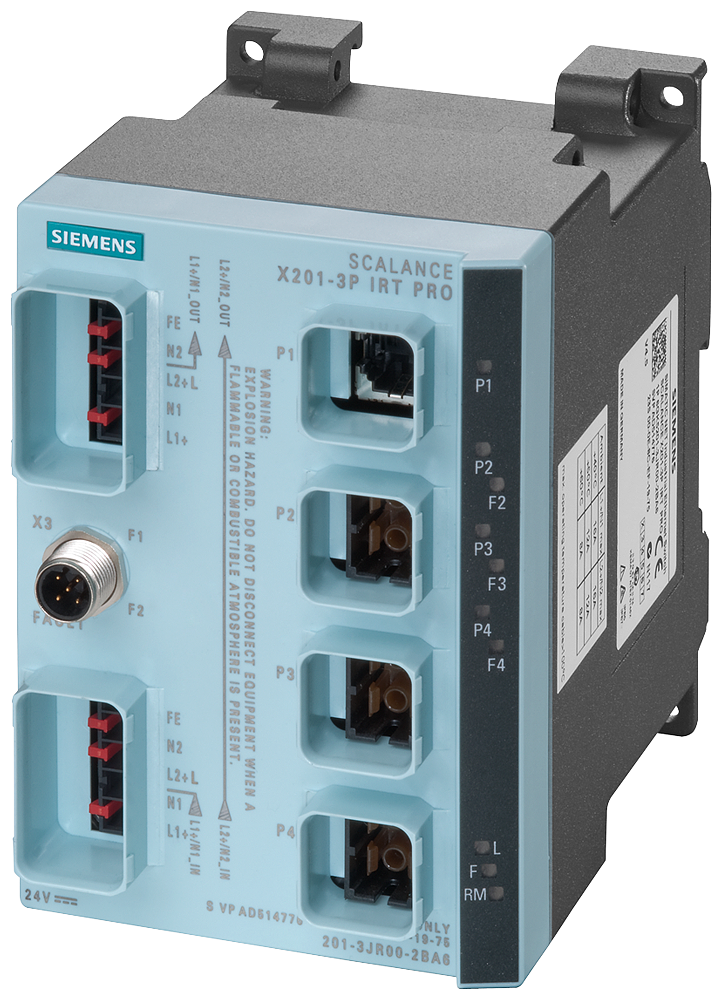

Siemens SCALANCE X201-3P IRT PRO 6GK52013JR002BA6 Compact Managed Ethernet Switch, 100BaseFX Interface, RJ-45 Port, Telnet/HTTP/HTTPS/TFTP/FTP/DCP/LLDP/SNMP v1/SNMP v/SNMP v3/HRP/MRP/PRP/SSH/SNTP Protocol
Share Share Print Print
Siemens

Siemens SCALANCE X201-3P IRT PRO 6GK52013JR002BA6 Compact Managed Ethernet Switch, 100BaseFX Interface, RJ-45 Port, Telnet/HTTP/HTTPS/TFTP/FTP/DCP/LLDP/SNMP v1/SNMP v/SNMP v3/HRP/MRP/PRP/SSH/SNTP Protocol

Short Description

Enhance your network's performance with the Siemens SCALANCE X201-3P IRT PRO Compact Managed Ethernet Switch. Featuring a robust 100BaseFX interface and versatile connectivity options, this switch is designed for reliable operation in demanding environments. Perfect for industrial applications, it supports multiple protocols to ensure seamless integration and management.Enhanced by AI

Siemens SCALANCE X201-3P IRT PRO Ethernet Switch, Compact Managed, 100BaseFX Interface, RJ-45 Port, Protocol: Telnet/HTTP/HTTPS/TFTP/FTP/DCP/LLDP/SNMP v1/SNMP v/SNMP v3/HRP/MRP/PRP/SSH/SNTP, C-Plug/Terminal Block Connectivity, POF/PCF Cable, 5-Pin M12, SC Connector, 24 VDC Supply, P65, DIN Rail/Wall Mount, 90 mm Width, 125 mm Height, -25 to 60 deg C, Environmental Conditions: -40 to 70 deg C Storage, 95% Non-Condensing Ambient Relative Humidity

MFG #: 6GK52013JR002BA6

EECO #: SIC6GK52013JR002BA6

Brand: Siemens
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43222612
Interface
100BaseFX
Cable Type
POF/PCF
Application
Industrial Applications
Power Supply
24
Mounting Type
DIN Rail/Wall
Connector Type
5-Pin M12, SC
Enclosure Type
P65
Temperature Rating
-25 to 60
Environmental Conditions
-40 to 70 deg C Storage, 95% Non-Condensing Ambient Relative Humidity
Type
Compact Managed
Width
90
Height
125
Includes
Electronic CD-ROM Manual and C-Plug
Protocol
Telnet/HTTP/HTTPS/TFTP/FTP/DCP/LLDP/SNMP v1/SNMP v/SNMP v3/HRP/MRP/PRP/SSH/SNTP
Connectivity
C-Plug/Terminal Block
Features
  • Model: Siemens SCALANCE X201-3P IRT PRO
  • Type: Compact Managed Ethernet Switch
  • Interface: 100BaseFX
  • Connectivity: RJ-45 Port, C-Plug/Terminal Block
  • Protocols Supported: Telnet, HTTP, HTTPS, TFTP, FTP, DCP, LLDP, SNMP v1/v2/v3, HRP, MRP, PRP, SSH, SNTP
  • Cable Compatibility: POF/PCF Cable
  • Connector Type: 5-Pin M12, SC Connector
  • Power Supply: 24 VDC
  • Mounting Options: DIN Rail/Wall Mount
  • Dimensions: 90 mm Width, 125 mm Height
  • Operating Temperature: -25 to 60 °C
  • Storage Temperature: -40 to 70 °C
  • Humidity: 95% Non-Condensing Ambient Relative Humidity
  • Ingress Protection: IP65

Enhanced by AI
