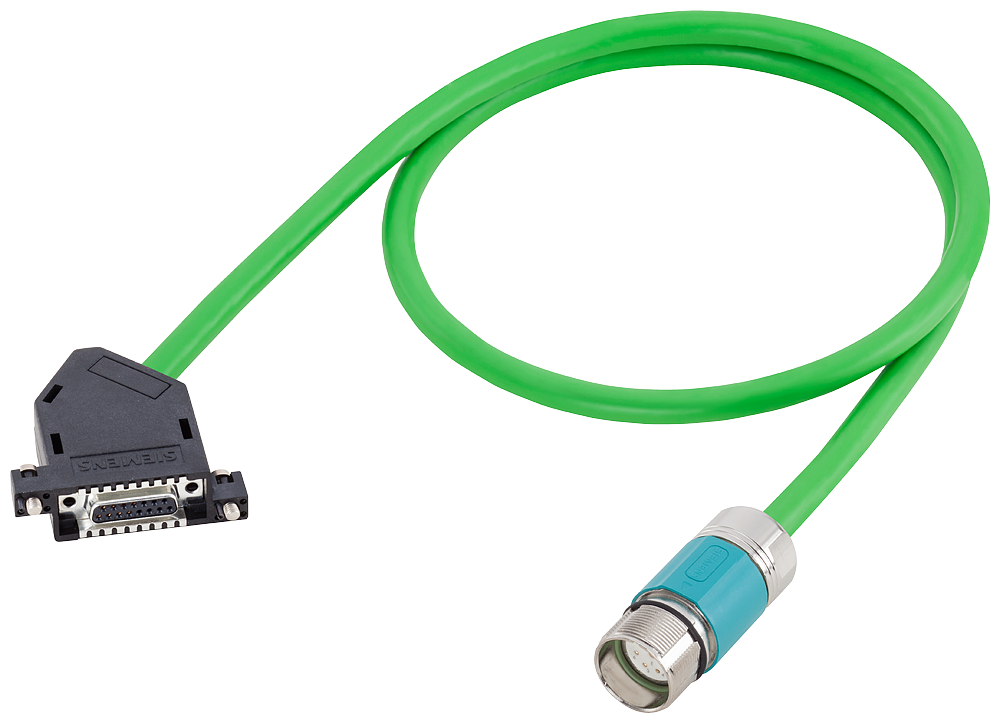

Siemens MOTION-CONNECT® 500 6FX50022AD041BA0 Pre-Assembled Extension Signal Cable, 30 V, (12) (10) 0.14, (2) 0.5 sq-mm, 10 m L
Share Share Print Print
Siemens

Siemens MOTION-CONNECT® 500 6FX50022AD041BA0 Pre-Assembled Extension Signal Cable, 30 V, (12) (10) 0.14, (2) 0.5 sq-mm, 10 m L

Short Description

MOTION-CONNECT® includes connection systems and components which are optimally tailored to individual areas of application. MOTION-CONNECT® cables feature state-of-the-art connection systems to ensure fast, reliable connection of different components, offer maximum quality as well as system tested reliability. MOTION-CONNECT® cables are available as fully-assembled power and signal cables or sold by the meter. The pre-assembled cables can be ordered in length units of 10 cm (3.94 in) and can be extended, if necessary.

Siemens MOTION-CONNECT® 500 Extension Signal Cable, Pre-Assembled, 30 V, 12 Conductors, (10) 0.14 , (2) 0.5 sq-mm Conductor, 9.2 mm OD, 10 m Length, SME25 Sensor Module x Absolute Encoder with 2.1 5 VDC EnDat Full Threaded Connector End Style, CFC Insulation, PVC Jacket, Green Jacket, -4 to 176 deg F
MFG #: 6FX50022AD041BA0

EECO #: SIC6FX50022AD041BA0

Brand: Siemens
UPC #: 804766938559
Attributes
Features
Documents
Product Information
Attributes
Length
10
UNSPSC
26121604
End Style
SME25 Sensor Module x Absolute Encoder with 2.1 5 VDC EnDat Full Threaded Connector
Jacket Color
Green
Conductor Size
(10) 0.14 , (2) 0.5
Voltage Rating
30
Jacket Material
PVC
Temperature Rating
-4 to 176
Insulation Material
CFC
Number of Conductors
12
Type
Pre-Assembled
Outside Diameter
9.2
Features
  • Robust, high-performance and easy to use - thanks to pre-assembled cables with a rugged metal connector in degree of protection IP67 and reliable SPEED-CONNECT quick-release lock
  • Outstanding and proven quality achieved by consistent quality management and system tested cables
  • Cost-effective solution for predominantly fixed installation
  • Suitable for low mechanical loading
  • Tested for travel distances of up to 50 m
