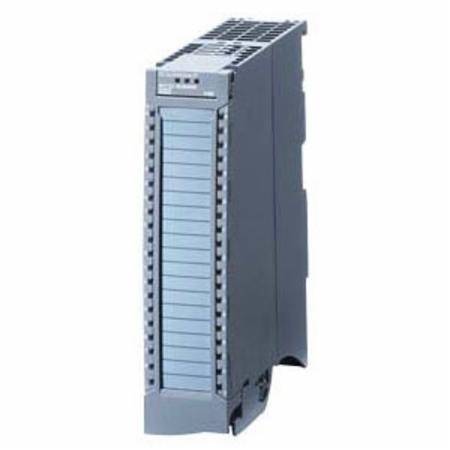

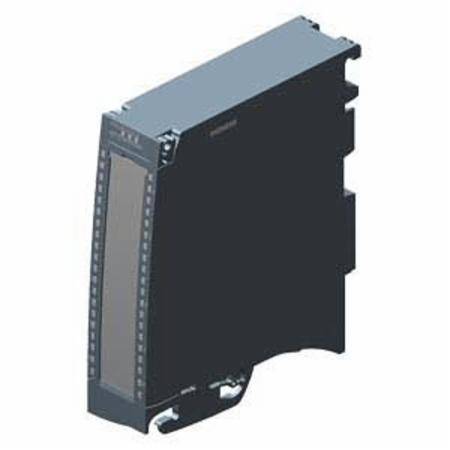

Siemens AG 6ES75225HF000AB0 Digital Output Module
Siemens AG 6ES75225HF000AB0 Digital Output Module
Siemens AG 6ES75225HF000AB0 Digital Output Module
Siemens AG 6ES75225HF000AB0 Digital Output Module
Share Share Print Print
Siemens

Siemens AG 6ES75225HF000AB0 Digital Output Module

Short Description

120/230 VAC, 5 A Output, 64 A Module, 8-Output, AC, Digital Output Module

Digital Output Module; Type AC; Output Configuration Relay; Number of Outputs 8; Output Voltage 120/230 Volt AC at 50/60 Hertz; Maximum Output Current per Output 5 Amp; Maximum Output Current per Module 64 Amp; Operating Temperature 0 to 60 Deg C Horizontal/0 to 40 Deg C Vertical; RoHS/REACH Compliant; Type Standard; Power Loss 5 Watt; Current Consumption 80 Milliamp; Overall Dimension 35 Millimeter Width x 129 Millimeter Depth x 147 Millimeter Height; Cable Length 1000 Meter (Shielded), 600 Meter (Unshielded); Operating Mode DQ, MSO; Used On SIMATIC S7-1500 Advanced Controller

MFG #: 6ES75225HF000AB0

EECO #: SIC6ES75225HF000AB0

Brand: Siemens
UPC #: 887621139131
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Output Type
8
Output Configuration
Relay
Type
AC
Output Voltage
120/230 Volt AC at 50/60 Hertz
Features
  • 8, 16 and 32-Channel Digital Output Modules
  • For Flexible Adaptation of the Controller to the Corresponding Task
  • For Subsequent Expansion of the System with Additional Outputs
  • 35 Millimeter Wide Modules with Parameters and Diagnostic Functions
  • 25 Millimeter Wide Modules for Use in Tight Spaces: Particularly Economical, without Parameters or Diagnostic Functions
  • Reverse Polarity Protection
  • Diagnostics Indication LED for Run, Error, Channel/Module Diagnostics
  • RoHS/REACH Compliant
SIEMEAINST00827
SIEMNSE31994_4_67_4_70_4_72_4_77_4_78
SIEMNSE80532_1_4
Qty Unit price
Ea
1 $545.00

Slqt
1 $545.00

Stpk
1 $545.00

Unit
1 $545.00
