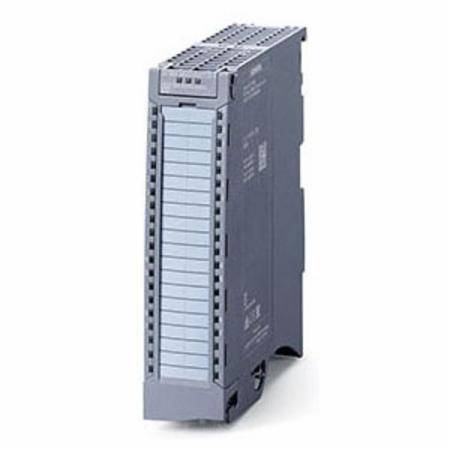

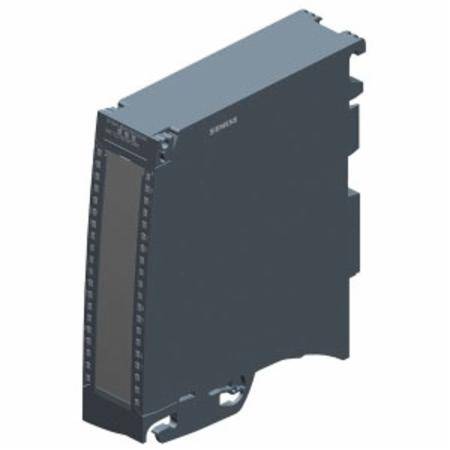

PrintSiemens AG 6ES75225EH000AB0 Digital Output Module
24/48 VAC, 24/48/125 VDC, 0.5 A Output, 8 A Module, 16-Output, AC/DC, Isolated, Digital Output Module
Digital Output Module; Type AC/DC, Isolated; Output Configuration Transistor; Number of Outputs 16; Output Voltage 24/48 Volt AC at 50 to 60 Hertz, 24/48/125 Volt DC; Maximum Output Current per Output 0.5 Amp; Maximum Output Current per Module 8 Amp; Operating Temperature 0 to 60 Deg C Horizontal/0 to 40 Deg C Vertical; RoHS/REACH Compliant; Type Standard; Power Loss 3.8 Watt; Overall Dimension 35 Millimeter Width x 129 Millimeter Depth x 147 Millimeter Height; Cable Length 1000 Meter (Shielded); Diagnostics Indication LED for Channel/Module Diagnostics; Operating Mode DQ, MSO; Applicable Standard ISO 13849-1, ISO 13849-1, IEC 62061; Used On SIMATIC S7-1500 Advanced Controller
EECO #: SIC6ES75225EH000AB0
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $1,215.00 |
|
Slqt |
|
| 1 | $1,215.00 |
|
Stpk |
|
| 1 | $1,215.00 |
|
Unit |
|
| 1 | $1,215.00 |
