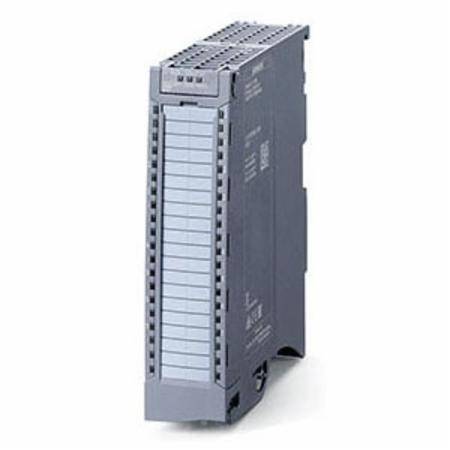

Siemens AG 6ES75217EH000AB0 Digital Input Module
Siemens AG 6ES75217EH000AB0 Digital Input Module
Siemens AG 6ES75217EH000AB0 Digital Input Module
Siemens AG 6ES75217EH000AB0 Digital Input Module
Share Share Print Print
Siemens

Siemens AG 6ES75217EH000AB0 Digital Input Module

Short Description

24/48/125 VAC/VDC, 16-Input, 0.05 to 20 ms, AC/DC, Digital Input Module

Digital Input Module; Type AC/DC; Number of Inputs 16; Operating Voltage 24/48/125 Volt AC/DC; Signal Delay Time 0.05 to 20 Millisecond; Operating Temperature 0 to 60 Deg C Horizontal/0 to 40 Deg C Vertical (Ambient); RoHS/REACH Compliant; Power Loss 2.2 Watt at 24 Volt DC, 6 Watt at 125 Volt AC; Input Current Rating 3 Milliamp at 24 Volt DC; Cable Length 1000 Meter (Shielded), 600 Meter Unshielded; Overall Dimension 35 Millimeter Width x 129 Millimeter Depth x 147 Millimeter Height; Operating Mode DI/MSI; Used On SIMATIC S7-1500 Advanced Controller

MFG #: 6ES75217EH000AB0

EECO #: SIC6ES75217EH000AB0

Brand: Siemens
UPC #: 804766231674
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Number of Inputs
16.0000
Operating Voltage
24/48/125 Volt AC/DC
Operating Temperature
0 to 60 Deg C Horizontal/0 to 40 Deg C Vertical (Ambient)
Signal Delay Time
0.05 to 20 Millisecond
Features
  • 16 and 32-Channel Digital Input Modules
  • For Flexible Adaptation of the Controller to the Corresponding Task
  • For Subsequent Expansion of the System with Additional Inputs
  • 35 Millimeter Wide Modules with Parameters and Diagnostic Functions
  • 25 Millimeter Wide Modules for Use in Tight Spaces: Particularly Economical, without Parameters or Diagnostic Functions
  • Diagnostics Indication LED for Channel and Module Diagnostics
  • RoHS/REACH Compliant
SIEMEAINST00824
SIEMNSE80529_1_4
Qty Unit price
Ea
1 $785.00

Slqt
1 $785.00

Stpk
1 $785.00

Unit
1 $785.00
