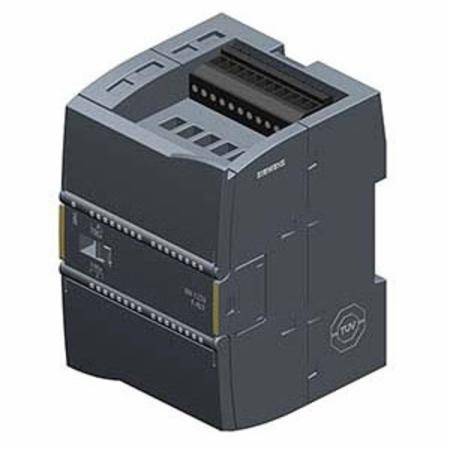

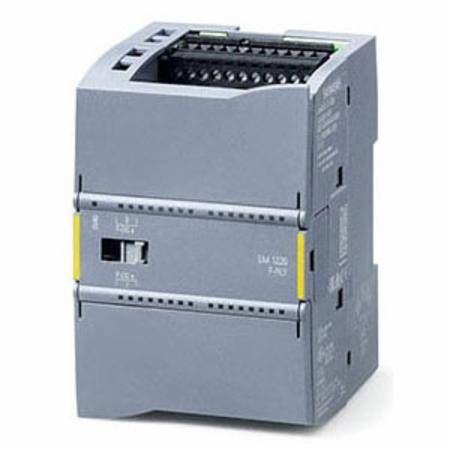

Siemens AG 6ES72266RA320XB0 Digital Relay Output Module

Name: Siemens AG 6ES72266RA320XB0 Digital Relay Output Module
Brand: Siemens
SKU: SIC6ES72266RA320XB0
Availability: InStock

Short Description

5 to 250 VAC/5 to 30 VDC, 5 A Output, 10 A Module, 2-Output, AC/DC, Fail-Safe, Digital Relay Output Module

Digital Relay Output Module; Type AC/DC, Fail-Safe; Output Configuration Relay; Number of Outputs 2; Output Voltage 5 to 250 Volt AC, 5 to 30 Volt DC; Maximum Output Current per Output 5 Amp; Maximum Output Current per Module 10 Amp; Operating Temperature 0 to 55 Deg C; Approval UL (Canada and US), CE, FM, IEC 61508; RoHS/REACH Compliant; Power Loss 10 Watt; Backplane Input Current Rating 120 Milliamp at 5 Volt DC; Overall Dimension 70 Millimeter Width x 75 Millimeter Depth x 100 Millimeter Height; Cable Length 200 Meter (Shielded), 200 Meter (Unshielded); Applicable Standard ISO 13849-1, IEC 61508; Used On SIMATIC S7-1200 Basic Controller

MFG #: 6ES72266RA320XB0

EECO #: SIC6ES72266RA320XB0 SIC6ES72266RA320XB0

Brand: Siemens

UPC #: 804766054631

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

32151705

Approval

UL (Canada and US), CE, FM, IEC 61508

Output Type

Output Configuration

Relay

Operating Temperature

0 to 55 Deg C

Maximum Output Current per Output

5 Amp

Type

AC/DC, Fail-Safe

Output Voltage

5 to 250 Volt AC, 5 to 30 Volt DC

Features

Relay Outputs as a Supplement to the Integral I/O of the CPUs
Integrated into the Overall Automation for the Implementation of Safety-Related Requirements
With Integrated Safety Functions
Communication with Fail Safe CPU Via Profisafe Mechanisms
For Flexible Adaptation of the Controller to the Corresponding Task
For Subsequent Expansion of the System with Additional Outputs
Operable Exclusively in the Central System
Diagnostics Indication LED for Status of the Outputs
RoHS/REACH Compliant
