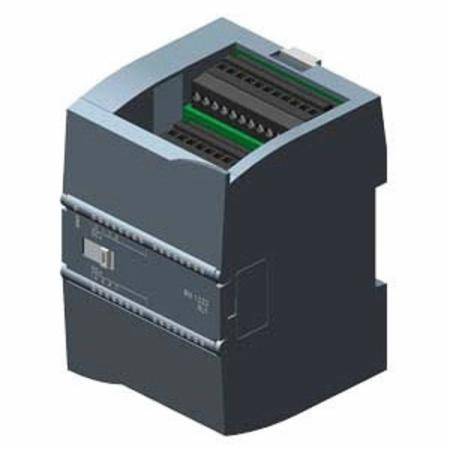

Siemens AG 6ES72221XF320XB0 Digital Output Module

Name: Siemens AG 6ES72221XF320XB0 Digital Output Module
Brand: Siemens
SKU: SIC6ES72221XF320XB0
Availability: InStock

Short Description

5 to 250 VAC/5 to 30 VDC, 8-Output, AC/DC, Fail-Safe, Digital Output Module

Digital Output Module; Type AC/DC, Fail-Safe; Output Configuration Relay; Number of Outputs 8; Output Voltage 5 to 250 Volt AC, 5 to 30 Volt DC; Operating Temperature -40 to 70 Deg C; Approval UL (Canada and US), CE, CSA, FM, RCM; RoHS Compliant; Power Loss 5 Watt; Backplane Input Current Rating 140 Milliamp at 5 Volt DC; Overall Dimension 70 Millimeter Width x 75 Millimeter Depth x 100 Millimeter Height; Cable Length 500 Meter (Shielded), 150 Meter (Unshielded); Degree of Protection IP20; Used On SIMATIC S7-1200 Basic Controller

MFG #: 6ES72221XF320XB0

EECO #: SIC6ES72221XF320XB0 SIC6ES72221XF320XB0

Brand: Siemens

UPC #: 887621206956

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

32151705

Approval

UL (Canada and US), CE, CSA, FM, RCM

Output Type

Output Configuration

Relay

Operating Temperature

-40 to 70 Deg C

Type

AC/DC, Fail-Safe

Output Current

0 to 20 Milliamp, +/- 20 Milliamp, 4 to 20 Milliamp

Output Voltage

5 to 250 Volt AC, 5 to 30 Volt DC

Features

Digital Outputs as Supplement to the Integral I/O of the CPUs
For Flexible Adaptation of the Controller to the Relevant Task
For Subsequent Expansion of the System with Additional Outputs
Diagnostics Indication LED for Status of the Outputs
Diagnostic Alarm
RoHS Compliant
