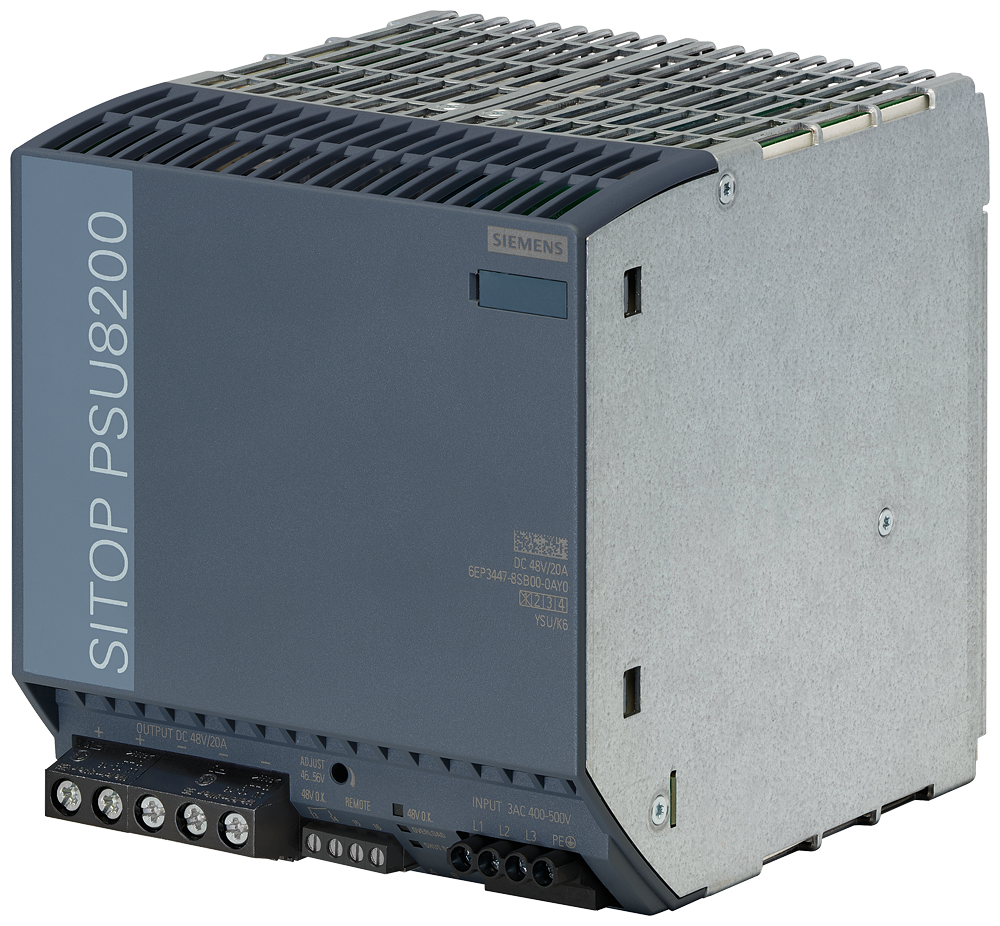

Siemens SITOP 6EP34478SB000AY0 PSU8200 3-Phase Stabilized Power Supply, 400 to 500 VAC Input, 48 VDC Output, 1.7/2 A Input, 20 A Output
Siemens SITOP 6EP34478SB000AY0 PSU8200 3-Phase Stabilized Power Supply, 400 to 500 VAC Input, 48 VDC Output, 1.7/2 A Input, 20 A Output
Siemens SITOP 6EP34478SB000AY0 PSU8200 3-Phase Stabilized Power Supply, 400 to 500 VAC Input, 48 VDC Output, 1.7/2 A Input, 20 A Output
Siemens SITOP 6EP34478SB000AY0 PSU8200 3-Phase Stabilized Power Supply, 400 to 500 VAC Input, 48 VDC Output, 1.7/2 A Input, 20 A Output
Share Share Print Print
Siemens

Siemens SITOP 6EP34478SB000AY0 PSU8200 3-Phase Stabilized Power Supply, 400 to 500 VAC Input, 48 VDC Output, 1.7/2 A Input, 20 A Output

Short Description

3-phase SITOP modular devices are technology power supplies for sophisticated solutions and offer maximum functionality for use in complex plants and machines. The wide range input allows a connection to almost any electrical power system worldwide and ensures a high degree of safety even if there are large voltage fluctuations. The power boost provides up to 3X the rated current for brief periods. In case of overload, you can choose between constant current with automatic restart or latching shutdown. The high degree of efficiency keeps energy consumption and heating in the control cabinet low and the compact metal housing also saves space.

Siemens SITOP Stabilized Power Supply, 3-Phase, Series: PSU8200, 400 to 500 VAC Input, 48 VDC Output, 1.7/2 A Input Current, 20 A Output Current, 58 W Power Dissipation, Specifications: Screw Terminal, DIN Rail Side-By-Side Snap Mount, IP20 Enclosure, -40 to 85 deg C Storage Temperature, -25 to 70 deg C, 145 mm H x 135 mm W x 150 mm D Dimensions

MFG #: 6EP34478SB000AY0

EECO #: SIC6EP34478SB000AY0

Brand: Siemens
UPC #: 804766731419
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121004
Temperature Rating
-25 to 70
Type
3-Phase
Series
PSU8200
Dimensions
145 mm H x 135 mm W x 150 mm D
Input Current
1.7/2
Input Voltage
400 to 500
Output Current
20
Output Voltage
48
Specifications
Screw Terminal, DIN Rail Side-By-Side Snap Mount, IP20 Enclosure, -40 to 85 deg C Storage Temperature
Power Dissipation
58
Features
  • 3-phase wide range input
  • Extremely slim design - no lateral installation clearances required
  • Power boost with 3X the rated current (for 25 ms) for tripping protective devices
  • Extra power with 1.5X the rated current (5 s/min) for brief functional overload
  • Selectable short circuit response between constant current and restart
  • Operating status on 3 LEDs
  • Extremely high efficiency up to 95%
  • 1.7 A at 500 VAC and 2 A at 400 VAC input current
