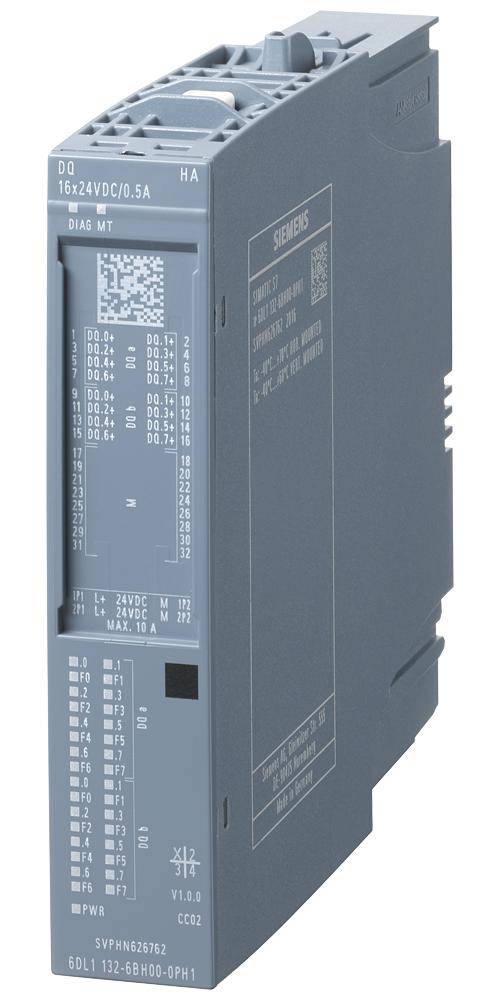

Siemens 6DL11326BH000PH1 Digital Output Module

Short Description

24 VDC, 0.5 A Output, 8 A Module, 16-Output, Relay, Digital Output Module

Siemens, 6DL11326BH000PH1, Digital Output Module, Series: SIMATIC ET, 16 Outputs, 24 VDC, 60 mA, -40 to 70 deg C, 115 mm H x 22.5 mm W x 138 mm D Dimensions
MFG #: 6DL11326BH000PH1

EECO #: SIC6DL11326BH000PH1

Brand: Siemens
UPC #: 804766484308
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43233603
Application
Suitable for terminal block, H1, M1, color code CC02, channel diagnostics
Voltage Rating
24
Temperature Rating
-40 to 70
Output Configuration
Relay
Operating Temperature
-40 to 70 Deg C (Horizontal), -40 to 60 Deg C (Vertical)
Maximum Output Current per Output
0.5 Amp
Type
DC
Series
SIMATIC ET
Dimensions
115 mm H x 22.5 mm W x 138 mm D
Output Voltage
24 Volt DC
Amperage Rating
60
Number of Outputs
16
Maximum Output Current per Module
8 Amp
Features
  • Redundancy at the PROFINET interface (S2 or R1)
  • Terminal Block with Integrated I/O Redundancy
  • Hot Swapping Online
  • Station Expansion Possible During Operation
  • Compact Modules with Permanent Wiring
  • Tool-Free Connection Using Push-In Terminals
  • System Integrated Power Bus
  • Communication Standard Using PROFINET
  • Seamless Integration in SIMATIC PCS 7
  • RoHS/Reach/WEEE Compliant
