Siemens

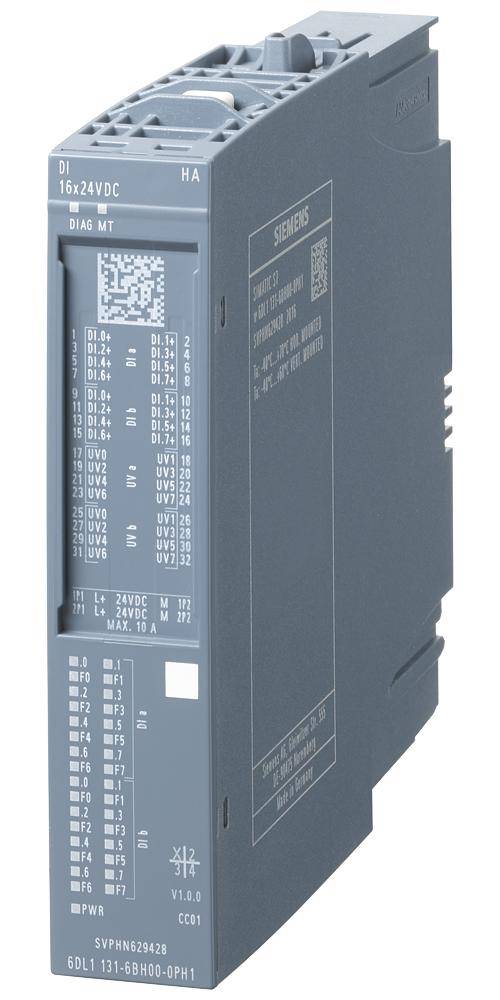

Siemens 6DL11316BH000PH1 Digital Input Module

Short Description

24 VDC, 16-Input, 2.5 mA, Digital Input Module

Siemens, 6DL11316BH000PH1, Digital Input Module, Series: SIMATIC ET, 16 Inputs, 16 Outputs, 24 VDC, 60 mA, -40 to 70 deg C, 115 mm H x 22.5 mm W x 138 mm D Dimensions
MFG #: 6DL11316BH000PH1

EECO #: SIC6DL11316BH000PH1

Brand: Siemens
UPC #: 804766484261
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43233603
Application
Suitable for terminal block H1, M1, color code CC01, channel diagnostics
Voltage Rating
24
Number of Inputs
16.0000
Operating Voltage
24 Volt DC
Temperature Rating
-40 to 70
Operating Temperature
-40 to 70 Deg C (Horizontal), -40 to 60 Deg C (Vertical)
Type
DC
Series
SIMATIC ET
Dimensions
115 mm H x 22.5 mm W x 138 mm D
Amperage Rating
60
Number of Outputs
16
Features
  • Sixteen 24 Volt DC Digital Inputs, Color Code CC01 for Terminal Block Type H1 and M1, Channel Diagnostics
  • Redundancy at the PROFINET interface (S2 or R1)
  • Terminal Block with Integrated I/O Redundancy
  • Hot Swapping Online
  • Station Expansion Possible During Operation
  • Compact Modules with Permanent Wiring
  • Tool-Free Connection Using Push-In Terminals
  • System Integrated Power Bus
  • Communication Standard Using PROFINET
  • Seamless Integration in SIMATIC PCS 7
  • RoHS/Reach/WEEE Compliant
