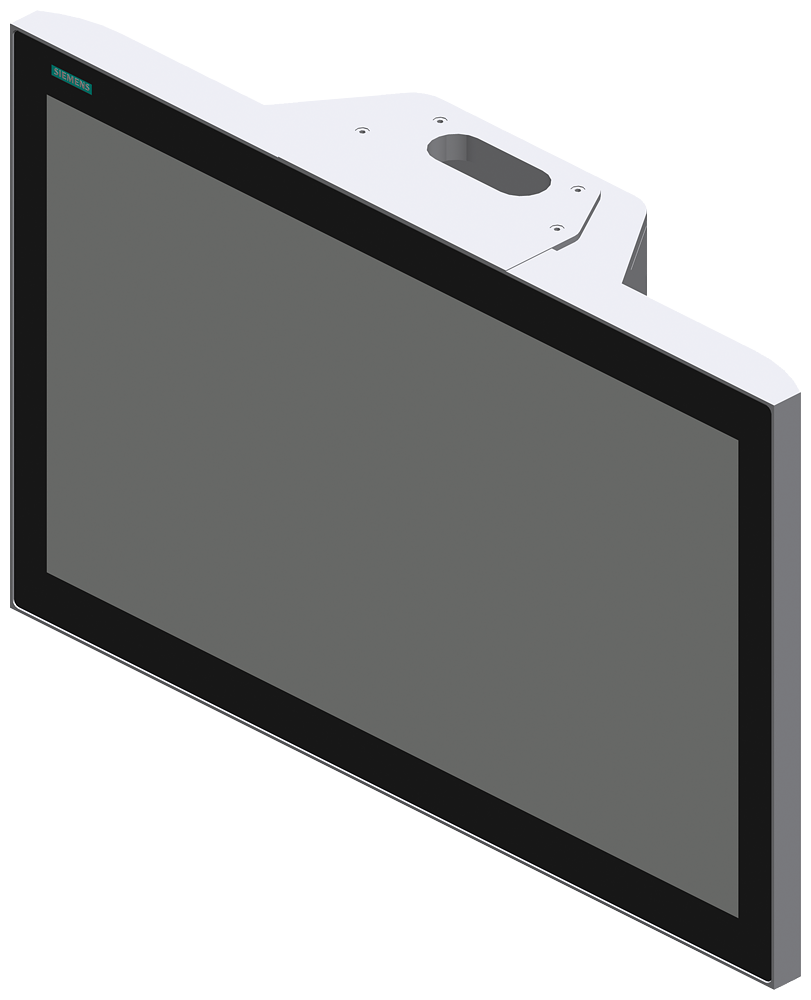

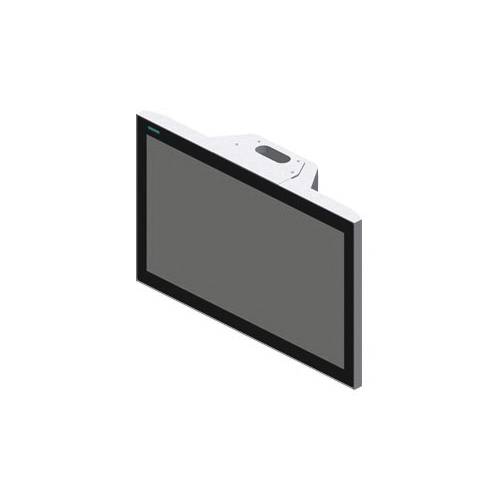

Siemens SIMATIC 6AV66461BC221AA0 Multi-Touch Industrial Thin Client Display, 24 VDC, 1.7 A, 41 W, 22 in TFT LED backlighting Display, (2) Ethernet, (4) USB
Siemens SIMATIC 6AV66461BC221AA0 Multi-Touch Industrial Thin Client Display, 24 VDC, 1.7 A, 41 W, 22 in TFT LED backlighting Display, (2) Ethernet, (4) USB
Siemens SIMATIC 6AV66461BC221AA0 Multi-Touch Industrial Thin Client Display, 24 VDC, 1.7 A, 41 W, 22 in TFT LED backlighting Display, (2) Ethernet, (4) USB
Siemens SIMATIC 6AV66461BC221AA0 Multi-Touch Industrial Thin Client Display, 24 VDC, 1.7 A, 41 W, 22 in TFT LED backlighting Display, (2) Ethernet, (4) USB
Share Share Print Print
Siemens

Siemens SIMATIC 6AV66461BC221AA0 Multi-Touch Industrial Thin Client Display, 24 VDC, 1.7 A, 41 W, 22 in TFT LED backlighting Display, (2) Ethernet, (4) USB

Short Description

Industrial thin clients are low-cost HMI terminals that provide local HMI functionality in plants spread over large areas. In this way, Industrial Thin Clients contribute to an improved overview, operability, and productivity of plants. In addition, the Industrial Thin Clients also reduce the total cost of ownership (TCO) by virtue of their extremely easy commissioning, efficient Ethernet networking, reduced software costs, and minimal service costs.

Siemens SIMATIC Industrial Thin Client Display, Multi-Touch, Series: ITC2200 V3 PRO, 24 VDC, 1.7 A, 41 W Power Source, TFT LED backlighting Display, 22 in Display, (2) Ethernet, (4) USB Communication Ports, 1920 x 1080 pixel Display Resolution, HTML5, CSS, PDF Reader Software, 0 to 45 deg C, Aluminum, 527mm W x 101 mm D x 330 mm H Dimensions

MFG #: 6AV66461BC221AA0

EECO #: SIC6AV66461BC221AA0

Brand: Siemens
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43211506
Material
Aluminum
Display Type
TFT LED backlighting
Temperature Rating
0 to 45
Type
Multi-Touch
Series
ITC2200 V3 PRO
Software
HTML5, CSS, PDF Reader
Dimensions
527mm W x 101 mm D x 330 mm H
Display Size
22
Communication Ports
(2) Ethernet, (4) USB
Features
  • Web browser functionality
  • SIMATIC WinCC Sm@rtServer
  • Standard RDP (remote desktop protocol) from Microsoft
  • VNC (virtual network computing)
  • SINUMERIK connection
  • The industrial thin client itself requires no installation and no licenses to operate
  • Run WinCC projects on other HMI devices or industrial PCs via Sm@rtServer
  • Run HMI applications (e.g. WinCC), office applications (e.g. Excel), or SAP directly at the machine via RDP
  • Operate a PC remotely with VNC (similar to RDP)
  • Use the SINUMERIK connection to make the industrial thin client a SINUMERIK thin client unit (TCU)
Siemens_6AV66461BC221AA0_Specification_Sheet
Siemens_6AV66461BB180AA0_Manual
