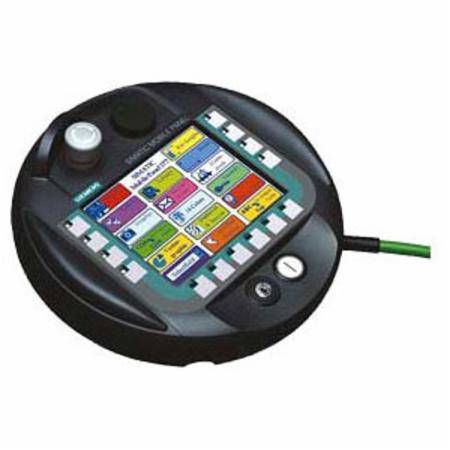

Siemens AG 6AV66450BC010AX0 HMI Mobile Panel
Share Share Print Print
Siemens

Siemens AG 6AV66450BC010AX0 HMI Mobile Panel

Short Description

5.7" Display, 320 x 240 Resolution, IP65, Plastic Front Panel, MTBF, STN, Color, HMI Mobile Panel

HMI Mobile Panel; Type Color; Operator Interface Type Touchscreen; Keypad Style Membrane; Display Type STN; Display Size 5.7 Inch; Resolution 320 x 240; Backlight Type MTBF; Application Memory 2048 Kilobyte Flash/RAM; Number of Function Keys 14; Communication Port Type PROFINETRS-485, Ethernet; Operating Temperature 0 to 40 Deg C; Enclosure IP65; Material Plastic Front Panel; Approval UL (Canada and US), CE, C-TICK; RoHS Compliant; OS Windows CE; Software WINCC Flexible Compact/Standard/Advanced, WINCC Comfort/Advanced/Professional; OS Windows CE; Number of Colors 256

MFG #: 6AV66450BC010AX0

EECO #: SIC6AV66450BC010AX0

Brand: Siemens
UPC #: 662643029703
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151703
Approval
UL (Canada and US), CE, C-Tick
Material
Plastic Front Panel
Resolution
320 x 240
Display Type
STN
Backlight Type
MTBF
Enclosure
IP65
Operating Temperature
0 to 40 Deg C
Number of Function Keys
14.0000
Operator Interface Type
Touchscreen
Type
Color
Display Size
5.7 Inch
Keypad Style
Membrane
Application Memory
2048 Kilobyte Flash/RAM
Communication Port Type
PROFINETRS-485, Ethernet
Features
  • Mobile Operator Panel for Direct Operator Control of the Plant and Machine from any Point
  • Versatile Use
  • Supports an Optimum View of the Work piece or Process and, at the Same Time, Direct Access and Visual Contact with the Operator Panel
  • Wireless Freedom
  • Freely-Configurable Function Keys with Customized Labels
  • RoHS Compliant
SIEMEAE27954_2_40_2_43
SIEMNSE47392_1_8
Qty Unit price
Ea
1 $10,695.00

Slqt
1 $10,695.00

Stpk
1 $10,695.00

Unit
1 $10,695.00
