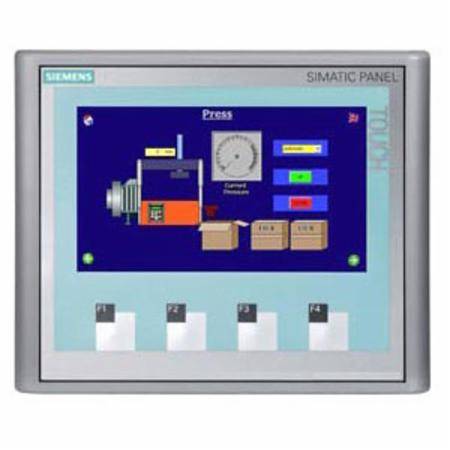

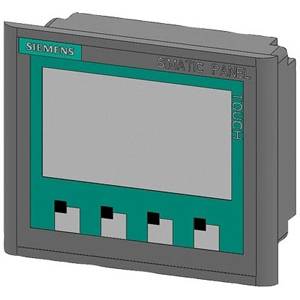

Siemens AG 6AV66420BD013AX0 HMI Panel

Name: Siemens AG 6AV66420BD013AX0 HMI Panel
Brand: Siemens
SKU: SIC6AV66420BD013AX0
Availability: InStock

Short Description

4.3" Display, 100 mA, 480 x 272 Resolution, NEMA 4/4X/12/IP20/IP65, MTBF, TFT, Color, HMI Panel

HMI Panel; Type Color; Operating Current 100 Milliamp; Operator Interface Type Touchscreen, Keypad; Keypad Style Membrane; Display Type TFT; Display Size 4.3 Inch; Resolution 480 x 272; Backlight Type MTBF; Number of Function Keys 4; Communication Port Type MPI/PROFIBUS, USB/RS-485/RS-422, Ethernet; Operating Temperature 0 to 50 Deg C; Enclosure NEMA 4/4X/12, IP20/65; Mounting Vertical; Approval UL (Canada and US), CE, GL, FM, EAC; RoHS Compliant; OS Windows CE; Software WINCC Flexible Compact/Standard/Advanced, WINCC Comfort/Advanced/Professional; Number of Colors 256

MFG #: 6AV66420BD013AX0

EECO #: SIC6AV66420BD013AX0 SIC6AV66420BD013AX0

Brand: Siemens

UPC #: 662643396850

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

32151703

Approval

UL (Canada and US), CE, GL, FM, EAC

Resolution

480 x 272

Display Type

TFT

Backlight Type

MTBF

Mounting

Vertical

Enclosure

NEMA 4/4X/12, IP20/65

Operating Temperature

0 to 50 Deg C

Number of Function Keys

4.0000

Operator Interface Type

Touchscreen, Keypad

Type

Color

Display Size

4.3 Inch

Keypad Style

Membrane

Operating Current

100 Milliamp

Communication Port Type

MPI/PROFIBUS, USB/RS-485/RS-422, Ethernet

Features

High Performance Thanks to Risk Processor and 2 Megabyte User Memory, Plus Additional Integrated Recipe Memory
Data in the Message Buffer are Retained Even when Panel is Disconnected from the Power Supply, without Batteries
Complete Functionality for Demanding Tasks
Comprehensive Reichert Graphic Library
Service-Friendly
RoHS Compliant
