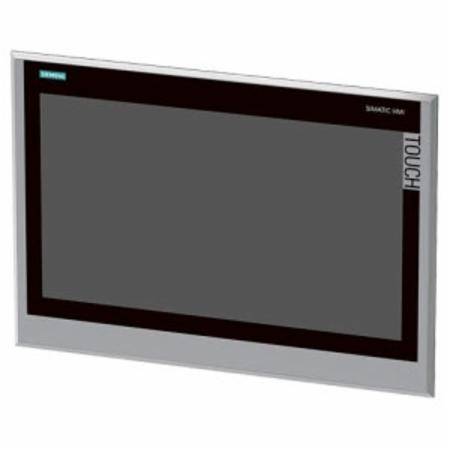

PrintSiemens AG 6AV21448UC100AA0 HMI Comfort Panel
19" TFT Color Display, 24 VDC, 1.3 A, 32 W, 1366 x 768 Pixel Resolution, NEMA 4X/IP20/66K, Stainless Steel Front Panel, PROFINET/MPI/IRT/MRP/PROFIBUS/MODBUS, Windows CE 6.0, 24 MB, Touchscreen, HMI Comfort Panel
HMI Comfort Panel; Type Color; Operating Voltage 24 Volt DC; Operating Current 1.3 Amp; Power Rating 32 Watt; Operator Interface Type Touchscreen; Display Type TFT; Display Size 230.4 Millimeter Width x 409.8 Millimeter Height; Resolution 1366 x 768 Pixel; Backlight Type MTBF; Number of Touch Cells 40; Application Memory 24 Megabyte Flash/RAM; Communication Port Type PROFINET, MPI, IRT, MRP, PROFIBUS, MODBUS; Front Panel Height 337 Millimeter; Operating Temperature 0 to 45 Deg C Vertical/0 to 40 Deg C Tilt Angle (Ambient); Enclosure NEMA 4X, IP20/66K; Material Stainless Steel (Front Panel); Mounting Vertical; Approval UL (Canada and US), CE, C-TICK, EAC; RoHS/REACH Compliant; Screen Diagonal Size 19 Inch; Housing Front Width 483 Millimeter; Backlight Lifetime 50000 Hour; Processor Type X86; Operating System Windows CE 6.0; Humidity Rating 70 Percent; Applicable Standard ATEX, IECEx, Class 1 Zone 2 Div 2; Number of Colors 16777216
EECO #: SIC6AV21448UC100AA0
