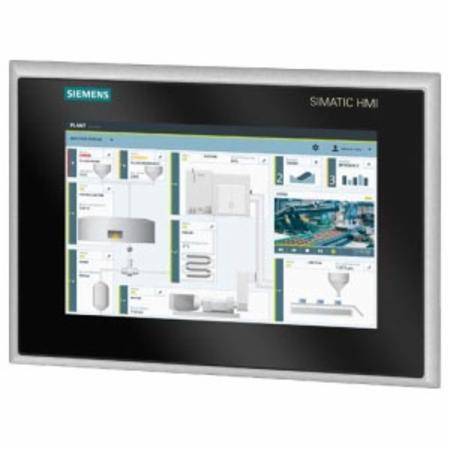

PrintSiemens AG 6AV21448JC200AA0 HMI Comfort Panel
9" TFT Color Display, 24 VDC, 0.75 A, 18 W, 800 x 480 Pixel Resolution, IP20/66K/69K, Hardened Glass/Stainless Steel Front Panel, PROFINET/MPI/IRT/MRP/PROFIBUS/MODBUS, Windows CE 6.0, 12 MB, Touchscreen, HMI Comfort Panel
HMI Comfort Panel; Type Color; Operating Voltage 24 Volt DC; Operating Current 0.75 Amp; Power Rating 18 Watt; Operator Interface Type Touchscreen; Display Type TFT; Display Size 117 Millimeter Width x 195 Millimeter Height; Resolution 800 x 480 Pixel; Backlight Type MTBF; Number of Touch Cells 40; Application Memory 12 Megabyte Flash/RAM; Communication Port Type PROFINET, MPI, IRT, MRP, PROFIBUS, MODBUS; Front Panel Height 190 Millimeter; Operating Temperature 0 to 50 Deg C Vertical/0 to 40 Deg C Tilt Angle (Ambient); Enclosure IP20/66K/69K; Material Hardened Glass/Stainless Steel (Front Panel); Mounting Vertical; Approval CE, C-TICK; RoHS Compliant; Screen Diagonal Size 9 Inch; Housing Front Width 274 Millimeter; Backlight Lifetime 80000 Hour; Processor Type X86; Operating System Windows CE 6.0; Humidity Rating 90 Percent; Number of Colors 16777216
EECO #: SIC6AV21448JC200AA0
