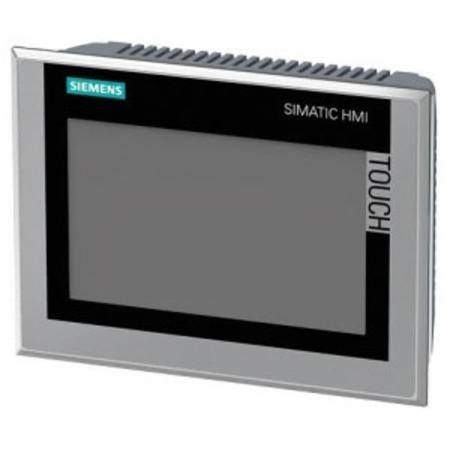

PrintSiemens AG 6AV21448GC100AA0 HMI Comfort Panel
7" TFT Color Display, 24 VDC, 0.5 A, 12 W, 800 x 480 Pixel Resolution, NEMA 4X/IP20/66K, Stainless Steel Front Panel, PROFINET/MPI/IRT/MRP/PROFIBUS/MODBUS, Windows CE 6.0, 12 MB, Touchscreen, HMI Comfort Panel
HMI Comfort Panel; Type Color; Operating Voltage 24 Volt DC; Operating Current 0.5 Amp; Power Rating 12 Watt; Operator Interface Type Touchscreen; Display Type TFT; Display Size 91.4 Millimeter Width x 152.4 Millimeter Height; Resolution 800 x 480 Pixel; Backlight Type MTBF; Number of Touch Cells 32; Application Memory 12 Megabyte Flash/RAM; Communication Port Type PROFINET, MPI, IRT, MRP, PROFIBUS, MODBUS; Front Panel Height 158 Millimeter; Operating Temperature 0 to 50 Deg C Vertical/0 to 40 Deg C Tilt Angle (Ambient); Enclosure NEMA 4X, IP20/66K; Material Stainless Steel (Front Panel); Mounting Vertical; Approval UL (Canada and US), CE, C-TICK, KC, EAC, FM; RoHS Compliant; Screen Diagonal Size 7 Inch; Housing Front Width 214 Millimeter; Backlight Lifetime 80000 Hour; Processor Type X86; Operating System Windows CE 6.0; Humidity Rating 90 Percent; Applicable Standard ATEX, IECEx, Class 1 Zone 2 Div 2, Class 1, Div 2; Number of Colors 16777216
EECO #: SIC6AV21448GC100AA0
