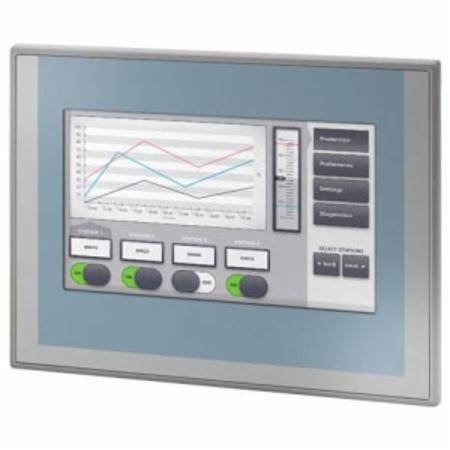

PrintSiemens AG 6AV21436GB000AA0 HMI Basic Panel
7" TFT Display, 24 VDC, 230 mA, 5.5 W, 800 x 480 Pixel Resolution, NEMA 4/4X/IP20/65, Plastic Front Panel, PROFIBUS/MODBUS/Ethernet, LED, Touchscreen, Color, HMI Basic Panel
HMI Basic Panel; Type Color; Operating Voltage 24 Volt DC; Operating Current 230 Milliamp; Power Rating 5.5 Watt; Operator Interface Type Touchscreen; Display Type TFT; Display Size 85.9 Millimeter Width x 154.1 Millimeter Height; Resolution 800 x 480 Pixel; Backlight Type LED, MTBF; Application Memory 10 Megabyte Flash/RAM; Communication Port Type PROFIBUS, MODBUS, Ethernet; Front Panel Height 158 Millimeter; Operating Temperature 0 to 50 Deg C Vertical/0 to 40 Deg C Tilt Angle (Ambient); Enclosure NEMA 4/4X, IP20/65; Material Plastic (Front Panel); Mounting Horizontal, Vertical; Approval UL (Canada and US), CE, C-TICK, KC; RoHS Compliant; Screen Diagonal Size 7 Inch; Housing Front Width 214 Millimeter; Backlight Lifetime 20000 Hour; Processor Type ARM; Humidity Rating 90 Percent; Number of Colors 65536
EECO #: SIC6AV21436GB000AA0
